Jabsco # 37245-4192 Quiet-Flush Electric Toilet Regular Bowl

Jabsco Pump 37245-4192

Jabsco # 37245-4192

Jabsco catalog # 37245-4192, Quiet-Flush Electric Toilet. Toilet is 12 Volt DC. Regular Bowl Size with Soft Close seat and lid.

Price : $ 962.85

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

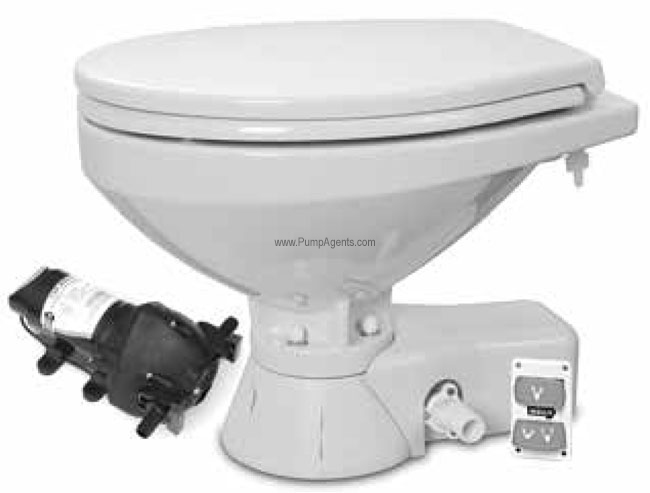

The Jabsco 37245-4192 is a Quiet-Flush Electric Toilet, 12 Volt DC, Regular Bowl, with a White Vitreous China Bowl. The Quiet Flush 37245 Series is supplied with a remote mounted, quiet-running flush pump to bring in sea, river or lake water for flushing. Complete with Pumpgard strainer. The Quiet Flush was designed to reduce noise levels when flushing. A three-way switch allows operation of the flush pump, the discharge pump or both, allowing the water level to be adjusted for user comfort. These toilets are available in regular or compact bowl sizes, and in two models: one has an intake pump for external water flushing, while the other has a special solenoid valve and siphon breaker to prevent contamination if the system is connected to a drinking water pressure pump. The Jabsco Quiet-Flush Toilet does not require routine maintenance other than occasional cleaning to maintain a hygienic sanitary condition.

Features :

Pump Body:
White Vitreous China Bowl

Product Specs :

Very quiet flush cycle - like a household toilet

Single button flush actuator - with dual function water

Supplied with PAR-MAX 2.9 self priming pump to provide sea or lake or river water to rinse the bowl level control switch

Features a powerful macerator discharge pump that breaks up waste and evacuates the toilet.

Supplied complete with 6' of white hose to neatly connect the inlet bowl fitting to either the solenoid valve/siphon breaker assembly or inlet pump.

Hygienic, pure white vitreous china bowl for ease of cleaning.

Baked enamel seat and cover - soft close seat option available on regular bowl models

May be mounted up to 3 feet below the waterline with proper plumbing to prevent flooding.

Complies with USCG 183.410 and ISO 8846 MARINE .


Parts and Accessories for Jabsco model 37245-4192


Major Overhaul Kit / Rebuild Kit :

Catalog # 90197-0000, Minor Service Kit

Price: $ 29.06

Qty :

Can Ship : Same Day (7 in stock)


Other Parts :

Catalog # 37072-0092, Macerator Waste Pump and Motor Assembly, 12 Volt DC EMC Compatible

Price: $ 294.63

Qty :

Can Ship : Same Day (14 in stock)


Catalog # 37072-0092, Macerator Waste Pump and Motor Assembly, 12 Volt DC EMC Compatible

Price: $ 294.63

Qty :

Can Ship : Same Day (14 in stock)

Applications

The 37245Series Quiet Flush Toilet is complete with a dedicated PARMAX 2.9 pump to provide either sea or lake water to rinse the toilet bowl when flushing the toilet. This pump is intended to be located remotely from the toilet but will function best if the distance from the toilet is kept to a minimum. Because it is selfpriming, it may be located above the vessels waterline. It must be installed with the Pumpgard strainer located somewhere in the inlet plumbing to the pump. The toilet also includes a multifunction flush control which should be installed in a bulkhead location that is convenient to the toilet and allows access for wiring to run from the power source and to both the toilet discharge pump and the PARMAX rinse water pump.

The QuietFlush toilet provides both quiet operation and user control of water levels in the toilet bowl. A single rocker switch provides a simple flush mode by activating both the rinse water supply and the macerator discharge pump simultaneously. An additional dual action rocker switch offers independent control of the rinse water supply and discharge pump separately so the bowl water level can be easily raised or lowered by the user.This provides a method of minimizing water use, when desired, as well as a means of raising the water level in the bowl when appropriate for user comfort. It also allows for complete evacuation of the bowl water while underway in rough sea conditions.
