Jabsco # 37045-0094 Quiet Flush Electric Toilet Compact Size

Jabsco Pump 37045-0094

Jabsco # 37045-0094

Jabsco catalog # 37045-0094, Quiet Flush Electric Toilet. Toilet is 24 Volt DC. Compact Size Size.

Price : $ 653.79

Qty :

Same Day (1 in stock)

Click Here for PARTS



Product Information :

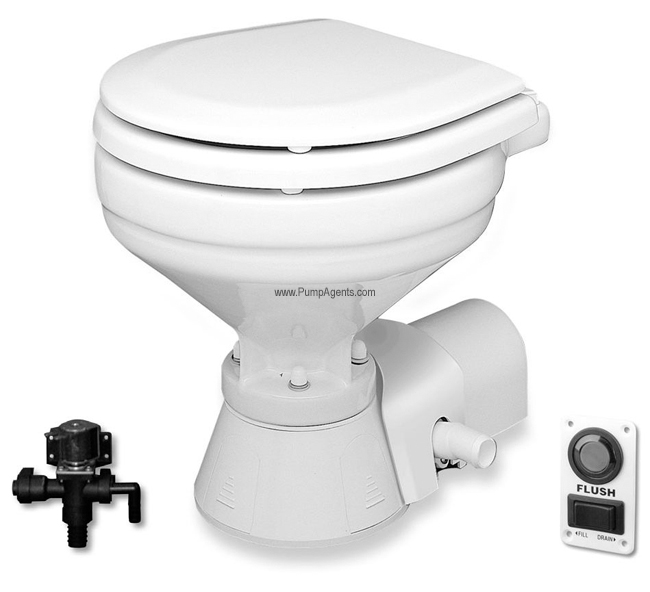

The Jabsco 37045-0094 is a Quiet Flush Electric Toilet, 24 Volt DC, Compact Size, with a White Vitreous China Bowl. Water Consumption for this toilet is 1-2 Quarts (Litres) per Flush. This toilet can be plumbed to any pressurized water system that can provide a minimum of 3-1/2 GPM (13.5 LPM). This may be a fresh water system including the vessels potable water system or a washdown system utilizing either fresh or salt water. However, it must be connected to a pressurized system that normally remains on at all times while the vessel is in use. The Quiet-Flush toilet provides both quiet operation and user control of water levels in the toilet bowl. A single large push button switch provides a simple flush mode by activating both the rinse water supply and the macerator discharge pump simultaneously. An additional rocker switch offers independent control of the rinse water supply and discharge pump separately so the bowl water level can be easily raised or lowered by the user. This provides a method of minimizing water use, when desired, as well as a means of raising the water level in the bowl when appropriate for user comfort. It also allows for complete evacuation of the bowl water while underway in rough sea conditions. Quiet Flush Toilets have the pump at the rear of a narrow base, allowing it to be installed in more narrow spaces. Three-way controls allow water level to be increased or decreased.

Features :

Pump Body:
White Vitreous China Bowl
Port Size:
Ports are 3/4 Inch Inlet Hose Barb X 1 Inch Discharge Hose Barb

Product Specs :

Can be plumbed to any pressurized water system that can provide a 3-1/2 GPM flow rate

Very quiet flush cycle - like a household toilet

Single button flush actuator - with dual function water level control switch

May be mounted up to 3' below the waterline with proper plumbing to prevent flooding.

Features a powerful macerator discharge pump that breaks up waste and evacuates the toilet.

Water control solenoid valve with anti-siphon breaker to prevent contamination of potable water supply

Supplied complete with 6 feet of white hose to neatly connect the inlet bowl fitting to either the solenoid valve/siphon breaker assembly or inlet pump.

Hygienic, pure white vitreous china bowl for ease of cleaning.

Baked enamel seat and cover

Complies with USCG 183.410 and ISO 8846 MARINE .


Parts and Accessories for Jabsco model 37045-0094


Seal Kit :

Catalog # 90197-0000, Minor Service Kit

Price: $ 29.06

Qty :

Can Ship : Same Day (7 in stock)

Applications

Jabsco is the worlds largest manufacturer of small craft marine toilets, so they have a fair amount of experience in waste system design and installation. All Jabsco toilets can be used on inland waterways, rivers, lakes or the sea, and can be installed above or below the waterline. However, attention must be paid to installation instructions for safety, and installations must meet with local regulations concerning overboard discharge. All Jabsco toilets are designed to discharge overboard or into holding tanks as necessary. Discharging waste overboard is illegal or unacceptable in many areas, so we also supply a range of holding tanks and tank emptying systems that make installation simple.
