Jabsco # 36900-1020 Fresh Water Pump

Jabsco Pump 36900-1020

Jabsco # 36900-1020

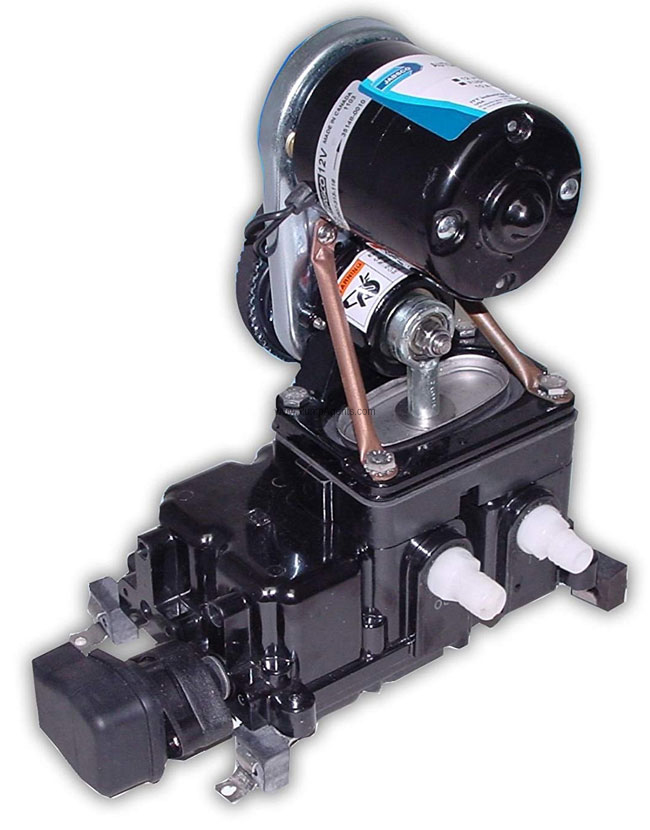

Jabsco catalog # 36900-1020, Fresh Water Pump and Motor unit. Pump is Coupled to a 32 Volts DC Motor. Pressure switch turns on at 20 PSI, turns off at 40 PSI. Ports are 1/2 Inch or 5/8 Inch ID Hose barb.

Price : $ 608.33

Qty :

Same Day (2 in stock)

Click Here for PARTS


Product Information :

The Jabsco 36900-1020 is a fresh water pump with 1/2 Inch or 5/8 Inch ID Hose barb Ports, 32 Volts DC Motor, with a Pressure switch that turns on at 20 PSI, and turns off at 40 PSI. Jabsco automatic water system pumps are designed for self contained recreational vehicles and pleasure boats with multiple-outlet water systems. The systems are automatic -when a faucet is opened, the pump instantly begins operation to provide a constant flow from tank to faucet. Closing the faucet automatically discontinues pump operation. Model 36800 is suited for up to five outlet distribution systems. Model 36900 is recommended for large distribution systems where duty requires simultaneous operation for multiple faucets.

Features :

Port Size:
Ports are 1/2 Inch or 5/8 Inch ID Hose barb

Product Specs :

Diaphragm Design Allows Dry Running

Built-in Discharge Check Valve

Quiet Operation

Built-in Hydraulic Pulsation Dampener

Large Vibration Absorbing Pads

Ports Available with Barb, Threads or Flare

Meets USCG Regulation 183.410

ISO 8846 MARINE for Ignition Protection

Parts and Accessories for Jabsco model 36900-1020


The Jabsco 369001020 diaphragm pumps are selfpriming. They may be located above or below the fresh water tank. The pump is equipped with vibration pads which are most effective when the pump is mounted upright on a solid surface.
