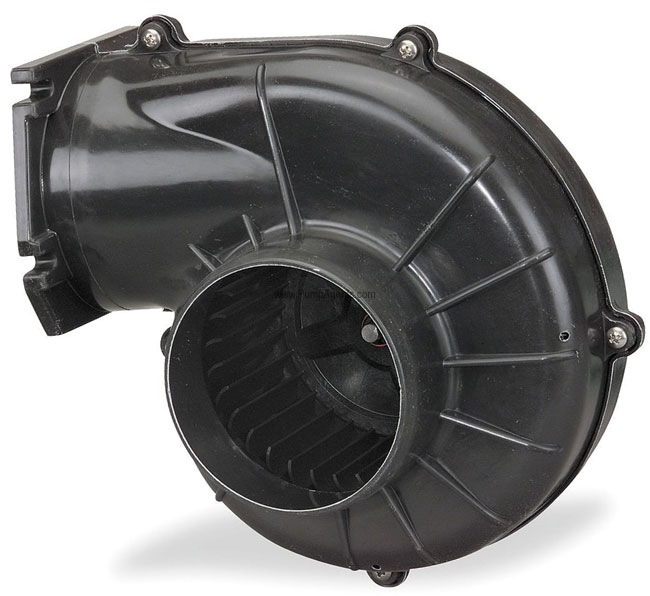

Jabsco # 36760-0115 Continuous Duty 4 Inch Flangemount Blower

Jabsco Pump 36760-0115

Jabsco # 36760-0115

Jabsco catalog # 36760-0115, Continuous Duty 4 Inch Flexmount Blower. Blower is Coupled to a 115 Volts Motor. Rated for 250 CFM air flow.

Price : $ 398.56

Qty :

Same Day (15 in stock)

Click Here for PARTS



Product Information :

The Jabsco 36760-0115 is a continuous duty 4 inch flangemount blower, with a 115 Volt Motor. This is rated for 250 CFM. The Jabsco AC blowers are ideal for ventilating equipment areas. They may also be used for engine room ventilation on vessels with diesel powered engines only. The blower is also suitable for general air circulation when AC power consumption is preferred. Flangemount Blowers are generally mounted with discharge port fastened directly to a flat external surface to minimize required ducting.The inlet port can then be connected with duct hose to the area requiring ventilation. Standard models are rated for intermittent service, 15 minutes maximum. These Commercial duty blowers are rated for continuous service. The blower housing flange should be mounted on a flat bulkhead surface. Selection of a dry cool location will prolong motor life.

This blower is not ignition protected. Do not use to exhaust flammable vapors such as gasoline fumes or mount in an area which may contain flammable vapors.

Features :

Product Specs :

Rated for 250 CFM

Extended Life Induction Motor

Tough Reinforced Thermoset Plastic Housing

Continuous-Duty Motor with Thermal Overload Protection

Slip-on Inlet Ducting Connection

Efficient High Volume Air Flow

Low Current Draw

Corrosion-Resistant Materials Throughout


Parts and Accessories for Jabsco model 36760-0115

Applications

Applications include Blow up signs and mascots, Bus ventilation, Tanning booths, Prison van ventilation, Building ventilation.
