Jabsco # 36680-2000 Electric Bilge Pump
Jabsco # 36680-2000

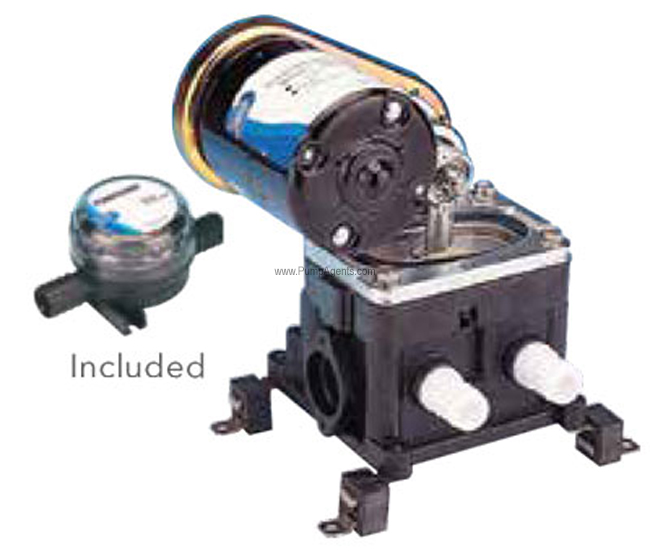

Jabsco catalog # 36680-2000, Electric Bilge Pump and Motor unit. Pump is Coupled to a 12 Volt DC Motor. Ports are 3/4 Inch Hose.
Price : $ 0.00
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 36680-2000 is an electric bilge reciprocating diaphragm pump with 3/4 Inch Hose Ports, coupled to a 12 Volt DC Motor. This is a fully serviceable, bilge and deck wash pump. Jabsco reciprocating diaphragm pumps provide dependable service and top performance. Self-priming so they can be remotely mounted. Unique run-dry diaphragm design. Belt drive and rubber mounting pads reduce noise and vibration. Long life permanently lubricated ball bearings. Corrosive resistant base assembly. Inlet and outlet ports for 3/4 Inch ID hose. Mount upright in a dry location (above highest bilge water level) on a solid surface. Adjust belt tension for 1/4 Inch play between pulleys.
Features :
Product Specs :
Self-Priming
Allows mounting above wet bilges.
Complete with Pumpgard strainer.
Diaphragm Design Allows Dry Running
Quiet Operation
Built-In Hydraulic Pulsation Dampener
Permanently Lubricated Ball Bearings on Shaft and Connecting Rod
Large Vibration Absorbing Pads
Corrosion Resistant Materials Throughout for Sea Water Service
Meets USCG Regulation 183.410 and ISO 8846 MARINE for Ignition Protection
ISO 8849 MARINE .
Parts and Accessories for Jabsco model 36680-2000
Applications
Jabsco diaphragm bilge pumps are selfpriming, so they can be mounted above and outside of harsh bilge environments. Because they are mounted remotely, the intake hose can be routed to the lowest point of the bilge regardless of SPACElimitations. They are supplied with an inline strainer to prevent damaging debris from entering pump. The reliable diaphragm design is not damaged by dry running.
