Jabsco # 34754-0000 Flexmount 3 Inch Blower 100 CFM
Jabsco # 34754-0000
Jabsco catalog # 34754-0000, Flexmount 3 Inch Blower 100 CFM. Blower is Coupled to a 115 Volt AC Motor.
Price : $ 233.21
Product Information :
Parts Page (click here)

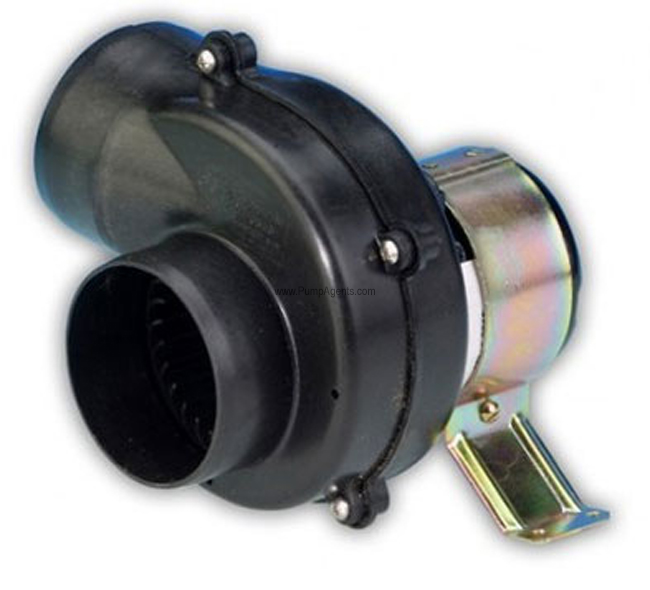

Product Manual PDF (view)The Jabsco 34754-0000 is a flexmount 3 inch blower coupled to a 115 Volt AC Motor. This has an air flow of up to 100 CFM . Flexmount blowers have both inlet and outlet ports designed for slip-on flexible duct connections. They are ideal when an in-line installation is preferred. The blower may be rotated in the mounting bracket to orient the discharge port in any direction. Standard duty blowers are rated for intermittent service, 15 minutes maximum.
Blower should be mounted away from extreme heat to prevent distortion of blower wheel or housing.
Features :
Product Specs :
Tough Reinforced Plastic Housing
Continuous-Duty Motor With Thermal Overload Protector
Mounts To Any Flat Surface
Slip-On Inlet Ducting Connection
Efficient High Volume Airflow
Low Current Draw
Corrosion-Resistant Materials Throughout
Parts and Accessories for Jabsco model 34754-0000
Applications
The jabsco 115 VAC blower is ideal for ventilating cabin odors Which may be present in galleys, heads or locker areas. It may Also be used for engine room ventilation on vessels with diesel Powered engines only. This blower is not ignition Protected. Do not use to exhaust flammable Vapors such as gasoline fumes or mount in an Area which may contain flammable vapors. The Blower is also suitable for general air circulation when 115 VAC Power consumption is preferred.
