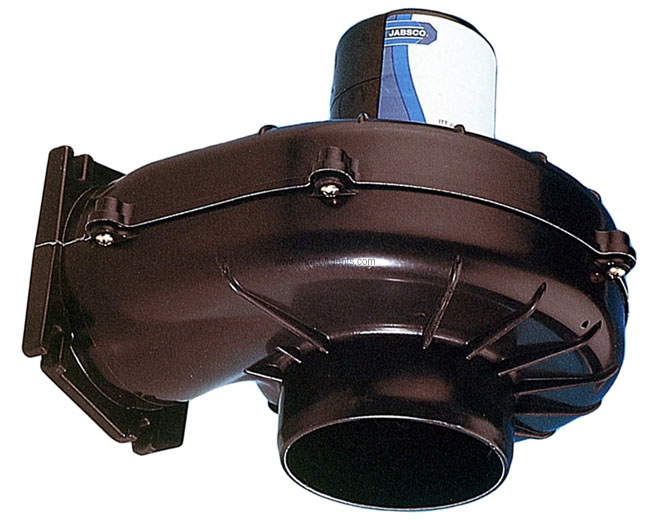

Jabsco # 34739-0030 Flangemount 3 Inch Marine Ventilation Blower

Jabsco Pump 34739-0030

Jabsco # 34739-0030

Jabsco catalog # 34739-0030, Flangemount 3 Inch Marine Ventilation Blower. Reinforced Plastic Construction. Blower is Coupled to a 32 Volt DC Motor. Rated for 150 CFM air flow.

Price : $ 557.06

Qty :

Same Day (2 in stock)

Click Here for PARTS


Product Information :

The Jabsco 34739-0030 is a reinforced plastic blower, rated for 150 CFM, coupled to a 32 Volt DC Motor. These are high-volume air intake or extraction blowers for engine room, fuel compartment, galley or heads. These quiet-running blowers are designed to allow easy connection to ductwork. They incorporate corrosion-resistant materials throughout. The DC Motors on these blowers comply with USCG Electrical Regulations of Title 33, Chapter I, Part 183; Subpart I and ISO 8846 MARINE for Ignition Protection, ISO 9097 Marine, and with EN 50081-1 for Suppression of Electromagnetic Interference. These Jabsco blowers are primarily intended for intermittent duty cycles such as evacuating fuel vapors from bilge areas. If desired, they also may be used for other general air circulation applications with longer duty cycles. However, when doing so, it should be noted that the maximum motor life is approximately 1000 hours. Therefore, the blower should only be used for applications if this length of service is acceptable.

Blower should be mounted away from extreme heat to prevent distortion of blower wheel or housing.

Features :

Pump Body:
Reinforced Plastic

Product Specs :

3 INCH Outlet flange mounts directly on bulkhead.

Tough Reinforced Plastic Housing.

Dimensionally stable, quiet-running Delrin rotors.

Corrosion-resistant materials throughout.

Slip-On Inlet Ducting Connection,

Efficient High Volume Air Flow,

Low-Current Draw,

N.M.M.A. Type Accepted.

Parts and Accessories for Jabsco model 34739-0030


Flangemount Blowers are of a radial design, which gives the highest output in more complex installations with longer ducting lengths and/or multiple bends in the ducting. They are generally mounted directly onto a flat bulkhead using a mounting collar to connect to the discharge ducting. This allows a very neat installation on an engine room bulk head. Jabsco DC Blowers are designed to remove fumes from the engine compartments of gasoline powered boats prior to startup, and therefore conform to ISO 8846 MARINE and USCG Regulations for ignition protection. They are listed as N.M.M.A. type accepted and comply with ISO 9097 MARINE and are CE marked. AC models are not ignition protected. Jabsco Blowers can also be used for air intake or extraction in galleys, bilges, accommodation and head compartments. Only the heavyduty blowers are designed for operation in commercial or heavy use applications. Blowers should not be installed close to sources of direct heat exceeding 180 degreesF.
