Jabsco # 30580-0102 Stainless Steel Pedestal Pump

Jabsco Pump 30580-0102

Jabsco # 30580-0102

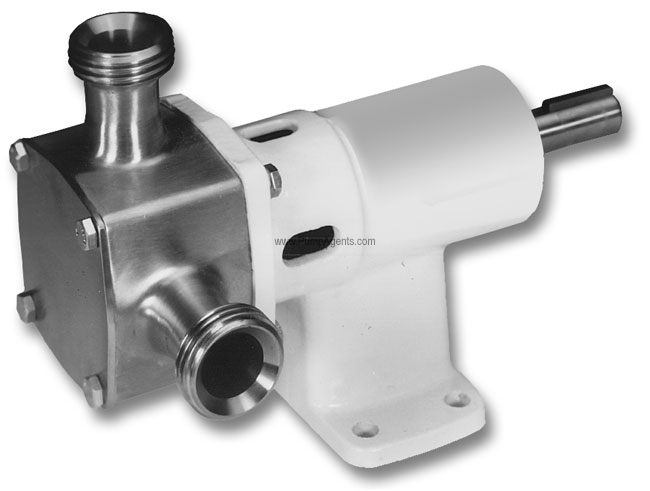

Jabsco catalog # 30580-0102, Stainless Steel Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a Standard Pressure EPDM Impeller and Tungsten Carbide Mechanical Seal. Ports are 2 Inch ACME Threads with Bevel Seat.

Price : $ 8236.60

Qty :

Same Day (2 in stock)

Click Here for PARTS


Product Information :

The Jabsco 30580-0102 is a 316 stainless steel Flexible Impeller pump with an EPDM Impeller, Tungsten Carbide Mechanical Seal, 2 Inch ACME Threaded Ports with Bevel Seat, bare shafted pedestal pump end only without a Motor. The Tungsten Carbide Seal variation in this pump is used for pumping liquids that contain abrasives or are highly corrosive. SELF-PRIMING Primes at low or high speeds. For vertical dry suction lift of 8 feet (EPDM), a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: EPDM - 45 degrees to 185 degrees F (7 degrees to 85 degrees C). Flow rate: Nominal 105 USgallons/min (397 Litres/min) at 1750rpm Self-priming from dry up to 5m (16.4ft) Pressure up to 3 bar. These pumps offer unique capabilities which are either not available or costly to acquire with other pumps. Hygienic flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained food, cosmetic and pharmaceutical products. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscousity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials.

Features :

Pump Body:
316 Stainless Steel
Standard Pressure EPDM
Shaft Seal:
Tungsten Carbide Mechanical Seal
Port Size:
Ports are 2 Inch ACME Threads with Bevel Seat

Product Specs :

Gentle, low-shear action for delicate products.

Easy to service and maintain.

Handles hard and soft solids without clogging.

Non pulsating flow.

Immediate self priming

Handling a wide viscosity range

Operating equally well at low and high speeds

Capable of transferring abrasive laden or air entrained liquids

Able to transfer fluids with solids

Compact size

Can drain even the last few ounces of liquid from a container

Certified to US 3A Standard 02-11

Clean-In-Place or easy strip clean

Parts and Accessories for Jabsco model 30580-0102

Shaft Seal :

Catalog # 18753-0255, Mechanical Seal, Nitrile/Tungsten Carbide

Price: $ 801.48

Qty :

Can Ship : Same Day (2 in stock)


DAIRY Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. FOODS Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter. BEVERAGE Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump.
