Jabsco # 30570-5002 Pump and Motor - 5 HP Stainless Steel w/ EPDM Imp

Jabsco Pump 30570-5002

Jabsco # 30570-5002

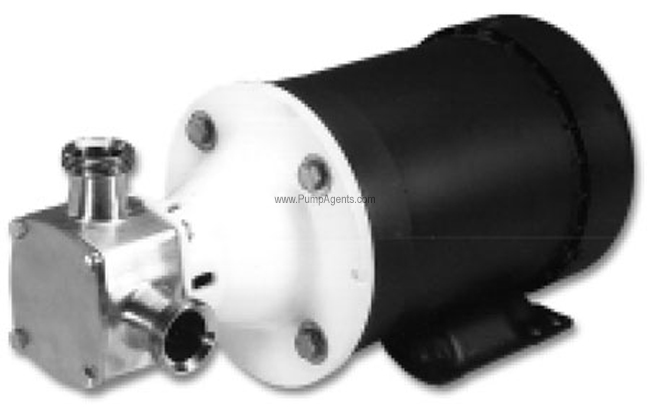

Jabsco catalog # 30570-5002, Stainless Steel Flexible Impeller Pump and Motor unit. 316 Stainless Steel Construction, with an EPDM Impeller and Food grade Nitrile, Carbon/Ceramic Mechanical Seal. Pump is Close Coupled to a 5 Horsepower, 1750 RPM, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Ports are 1-1/2 Inch Sanitary Clamp Type.

Price : $ 6459.89

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 30570-5002 is a 316 Stainless Steel Hygienic Flexible Impeller Pump with an EPDM Impeller, Food grade Nitrile/Carbon/Ceramic Mechanical Seal, 1-1/2 Inch Sanitary Clamp Type Ports, close coupled to a 5 Horsepower, 1750 RPM, 230/460 Volts, 3 Phase, TEFC, 60HZ Motor. These Hygienic flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained food, cosmetic and pharmaceutical products. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscousity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. These pumps offer unique capabilities which are either not available or costly to acquire with other pumps. SELF-PRIMING - Primes at low or high speeds. For vertical dry suction lift of 10 feet, a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: EPDM 45 degrees to 185 degrees F (7 degrees to 85 degrees C).

Do NOT pump gasoline, solvents, thinners or other flammable liquids.

Features :

Pump Body:
316 Stainless Steel
Impeller:
EPDM
Shaft Seal:
Food grade Nitrile, Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 1-1/2 Inch Sanitary Clamp Type
Motor Specs :
5 Horsepower, 1750 RPM RPM, 230/460 Volts, Three Phase, TEFC (Totally Enclosed Fan Cooled).

Product Specs :

Gentle, low-shear action for delicate products.

Type 316 stainless steel body, cover and shaft.

All materials per FDA standards.

3A and USDA listed.

Sanitary design external shaft mechanical seal.

Immediate self priming

Handling a wide viscosity range

Operating equally well at low and high speeds

Capable of transferring abrasive laden or air entrained liquids

Able to transfer fluids with solids

Compact size

Pumps in either direction and can be mounted in any orientation

Can drain even the last few ounces of liquid from a container


Parts and Accessories for Jabsco model 30570-5002


Impeller :

Catalog # 14346-0002, Impeller, Standard Pressure - EPDM

Price: $ 200.06

Qty :

Can Ship : Same Day (7 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 18753-0365, Body, Stainless Steel, 1-1/2 Inch Clamp Ports

Price: $ 1831.99

Qty :

Can Ship : Same Day (5 in stock)

Applications

These flexible impeller pumps have the design features and materials suitable for pumping food products, cosmetics and pharmaceuticals. DAIRY Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. FOODS Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter.< BEVERAGE Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump.
