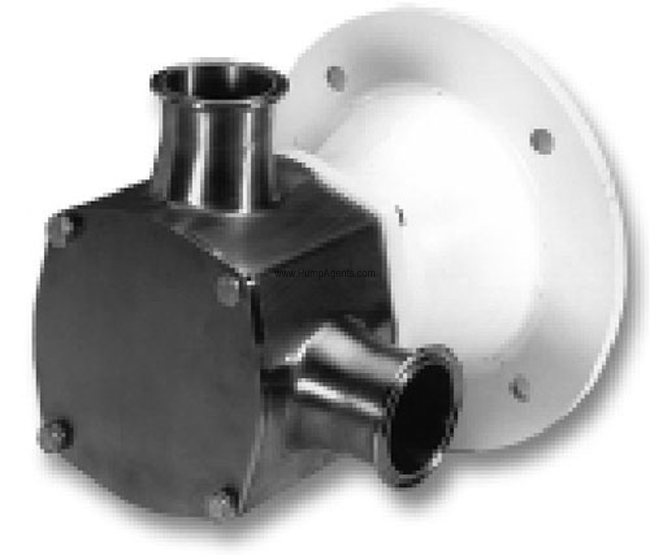

Jabsco # 30570-3105 Pump End only - Stainless Steel w/ Neoprene Impeller

Jabsco Pump 30570-3105

Jabsco # 30570-3105

Jabsco catalog # 30570-3105, Stainless Steel Flexible Impeller Pump, replacement pump end only without a motor. 316 Stainless Steel Construction, with a Neoprene Impeller and Food grade Nitrile, Tungsten Carbide Mechanical Seal. Ports are 1-1/2 Inch Sanitary Clamp Type.

Price : $ 6880.33

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 30570-3105 is a 316 Stainless Steel Flexible Impeller Pump with a Neoprene Impeller, Food grade Nitrile/Tungsten Carbide Mechanical Seal, 1-1/2 Inch Sanitary Clamp Type Ports, replacement pump end only without a Motor. These Hygienic flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained food, cosmetic and pharmaceutical products. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscousity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. These pumps offer unique capabilities which are either not available or costly to acquire with other pumps. SELF-PRIMING - Primes at low or high speeds. For vertical dry suction lift of 10 feet, a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: Neoprene - 45 degrees to 150 degrees F (7 degrees to 65 degrees C)

Do NOT pump gasoline, solvents, thinners or other flammable liquids.

Features :

Pump Body:
316 Stainless Steel
Impeller:
Neoprene
Shaft Seal:
Food grade Nitrile, Tungsten Carbide Mechanical Seal
Port Size:
Ports are 1-1/2 Inch Sanitary Clamp Type

Product Specs :

Gentle, low-shear action for delicate products.

Type 316 stainless steel body, cover and shaft.

All materials per FDA standards.

3A and USDA listed.

Sanitary design external shaft mechanical seal.

Immediate self priming

Handling a wide viscosity range

Operating equally well at low and high speeds

Capable of transferring abrasive laden or air entrained liquids

Able to transfer fluids with solids

Compact size

Pumps in either direction and can be mounted in any orientation

Can drain even the last few ounces of liquid from a container


Parts and Accessories for Jabsco model 30570-3105


Impeller :

Catalog # 14346-0005, Impeller, Standard Pressure - Neoprene

Price: $ 228.28

Qty :

Can Ship : Same Day (59 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 18753-0365, Body, Stainless Steel, 1-1/2 Inch Clamp Ports

Price: $ 1831.99

Qty :

Can Ship : Same Day (6 in stock)

Applications

These flexible impeller pumps have the design features and materials suitable for pumping food products, cosmetics and pharmaceuticals. DAIRY Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. FOODS Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter.< BEVERAGE Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump.
