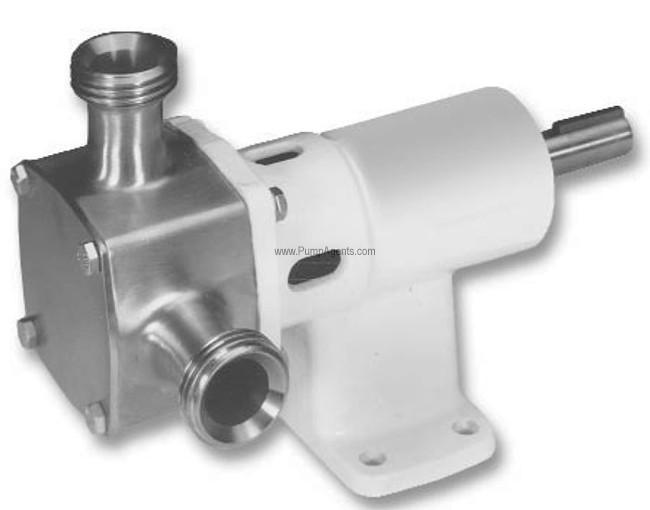

Jabsco catalog # 30570-0005, Stainless Steel Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a Standard Pressure Neoprene Impeller and Carbon/Ceramic Mechanical Seal. Ports are 1-1/2 Inch ACME Threads with Bevel Seat.
Price : $ 5029.71
The Jabsco 30570-0005 is a 316 stainless steel Flexible Impeller pump with a Neoprene Impeller, Carbon/Ceramic Mechanical Seal, 1-1/2 Inch ACME Threaded Ports with Bevel Seat, bare shafted pedestal pump end only without a Motor. These pumps offer unique capabilities which are either not available or costly to acquire with other pumps. Hygienic flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained food, cosmetic and pharmaceutical products. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscousity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. SELF-PRIMING Primes at low or high speeds. For vertical dry suction lift of 10 feet (neoprene), a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: Neoprene - 45 degrees to 150 degrees F (7 degrees to 65 degrees C). Flow rate: Nominal 55 USgallons/min (208 Litres/min) at 1750rpm.
Gentle, low-shear action for delicate products.
Easy to service and maintain.
Handles hard and soft solids without clogging.
Non pulsating flow.
Immediate self priming
Handling a wide viscosity range
Operating equally well at low and high speeds
Capable of transferring abrasive laden or air entrained liquids
Able to transfer fluids with solids
Can drain even the last few ounces of liquid from a container
Certified to US 3A Standard 02-11
Clean-In-Place or easy strip clean
Catalog # 14346-0005, Impeller, Standard Pressure - Neoprene
Price: $ 230.97
Shaft Seal :
Catalog # 18753-0249, Mechanical Seal, Nitrile/Carbon/Ceramic, less Seal Seat
Price: $ 164.40
Casing frozen or cracked ? New Pump Casing :
Catalog # 18753-0366, Body, Stainless Steel, 1-1/2 Inch ACME Threaded Ports with Bevel Seat
Price: $ 1999.01
Hygienic flexible impeller pumps have the design features and materials suitable for pumping food products, cosmetics and pharmaceuticals. DAIRY Transfer and processing of raw milk, cream, milk whey, buttermilk, condensed milk. Examples include FOODS Processing of eggs, sugar liquors, brines, catsup, chocolate, glaze, gelatin, honey, jams, jellies, mayonnaise, molasses, mustard, pickle relish, vinegar, water, yeast slurries, syrups, liquids containing solids in suspension such as chopped tomatoes, nuts, peanut butter. BEVERAGE Circulating and transferring alcohols, beers, brewery slop, cider, distillery wort, extracts, flavors, juice, mash, soft drink syrups, wines. PHARMACEUTICAL Moving medicines, cosmetics, process chemicals, lotions, preparations, filtering solutions, used as a filling line supply pump.
