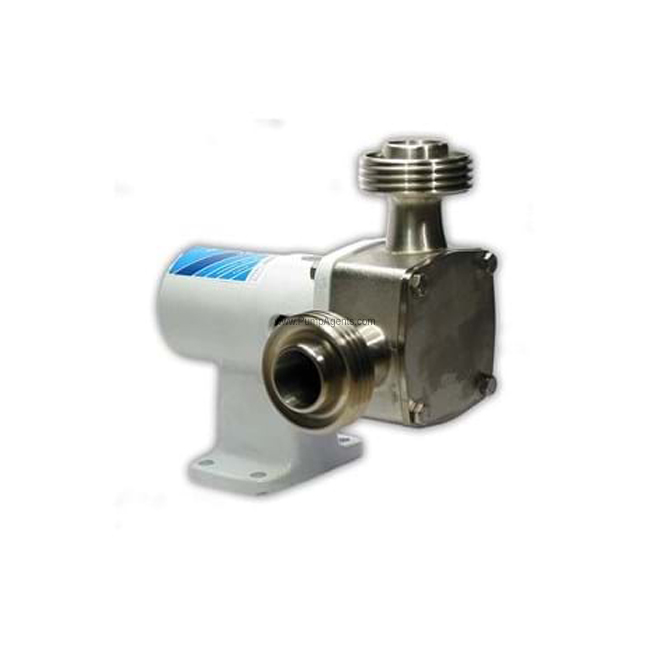

Jabsco # 30560-0112 Stainless Steel Pedestal Pump with EPDM Impeller

Jabsco Pump 30560-0112

Jabsco # 30560-0112

Jabsco catalog # 30560-0112, Stainless Steel Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with an EPDM High Pressure Impeller and Nitrile/Tungsten Carbide Mechanical Seal. Ports are 1 Inch ACME Threads with Bevel Seat.

Price : $ 4677.44

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 30560-0112 is a 316 Stainless Steel Hygienic Flexible Impeller Pump with an EPDM High Pressure Impeller, Nitrile/Tungsten Carbide Mechanical Seal, 1 Inch ACME Threads with Bevel Seat Ports, on a Bearing Pedestal without a motor. These Hygienic flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-en-trained food, cosmetic and pharmaceutical products. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscosity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. These pumps offer unique capabilities which are either not available or costly to acquire with other pumps. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: EPDM - 45 degrees to 185 degrees F (7 degrees to 85 degrees C).

Do NOT pump gasoline, solvents, thinners or other flammable liquids.

Features :

Pump Body:
316 Stainless Steel
Impeller:
EPDM, High Pressure
Shaft Seal:
Nitrile/Tungsten Carbide Mechanical Seal
Port Size:
Ports are 1 Inch ACME Threads with Bevel Seat

Product Specs :

Gentle, low-shear action for delicate products.

Type 316 stainless steel body, cover and shaft.

All materials per FDA standards.

3A and USDA listed.

Sanitary design external shaft mechanical seal.

Immediate self priming

Handling a wide viscosity range

Operating equally well at low and high speeds

Capable of transferring abrasive laden or air entrained liquids

Able to transfer fluids with solids

Compact size

Pumps in either direction and can be mounted in any orientation

Can drain even the last few ounces of liquid from a container


Parts and Accessories for Jabsco model 30560-0112


Impeller :

Catalog # 8840-0002, Impeller, High Pressure - EPDM

Price: $ 182.63

Qty :

Can Ship : Same Day (6 in stock)


Shaft Seal :

Catalog # 18753-0247, Mechanical Seal, Tungsten Carbide - Nitrile

Price: $ 514.27

Qty :

Can Ship : Same Day (4 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 18753-0360, Pump Body with 1 Inch ACME Threads and Bevel Seat

Price: $ 1513.36

Qty :

Can Ship : Same Day (2 in stock)


Other Parts :

Catalog # 18753-0263, O-Ring, Nitrile

Price: $ 9.41

Qty :

Can Ship : Same Day (274 in stock)

Applications

Hygienic flexible impeller pumps have the design features and materials suitable for pumping food products, cosmetics and pharmaceuticals.
