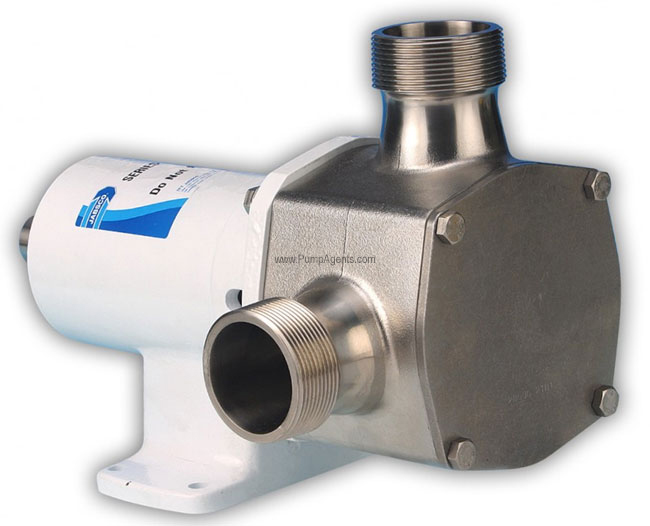

Jabsco catalog # 30540-0003, Industrial Stainless Steel Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a Standard Pressure Nitrile Impeller and Nitrile/Carbon/Ceramic Seal. Ports are 2 Inch NPT External.
Price : $ 5624.53
The Jabsco 30540-0003 is a 316 stainless steel Flexible Impeller pump with a Nitrile Impeller, Nitrile/Carbon/Ceramic seal, 2 Inch NPT External Ports, bare shafted pedestal pump end only without a Motor. SELF-PRIMING - Primes at low or high speeds. For vertical dry suction lift of 10 feet (neoprene/nitrile impellers only) a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. Nitrile impeller is ideal for oil based products. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: Nitrile - 50 degrees to 180 degrees F (10 degrees to 82 degrees C). Use this pump where single or variable speed operation is desirable. Self-priming, 105 gpm flow, debris tolerant.
Do not pump gasoline, solvents, thinners or other flammable liquids.
Pumping is bi-directional due to the symmetry of the pump configuration.
Will pump out until the last drop of media has gone.
Have a low lifetime cost; few parts need to be replaced over its lifetime.
Compact design still delivers high flow rates.
No need for a Pressure Relief Valve.
Gentle pumping action gives excellent suspended solids handling capability.
Pump can be mounted above or below the liquid source.
Flow rate is exponentially linear to impeller speed.
Capable of pumping across a wide range of viscosities.
Can pump very abrasive media.
Can pump foams, emulsions and gas enriched aqueous materials.
Operates at high and low motor speeds.
Will not airlock; continues to operate even when air passes through the system.
Catalog # 18786-0003, Impeller, Standard Pressure - Nitrile
Price: $ 188.44
Shaft Seal :
Catalog # 18753-0253, Mechanical Seal, Ceramic - Nitrile
Price: $ 213.99
Casing frozen or cracked ? New Pump Casing :
Catalog # 18753-0192, Pump Body, Stainless Steel
Price: $ 2507.23
INDUSTRIAL Circulating and transferring, velocitymixing, pumping machine tool coolants, spill return, sump drainage, chemicals, pharmaceuticals, soap, liquors, ink, dyes, alcohol, dilute acids, tanning liquors, glycerine, brine, etc. PHARMACEUTICAL Processing medicines, lotions and preparations. Filtering pharmaceutical solutions. Filling line supply pump. PAPER PROCESSING Transferring and applying starches, sizes, etc. Circulating and processing wood pulp slurries. FOOD, BEVERAGE and DAIRY Transfer brines, vinegar, syrups during processing, liquids containing solids in suspension such as chopped tomatoes, nuts, etc. Removal of distillery wort and brewery slop. Processing viscous materials such as peanut butter, mayonnaise, ketchup, honey, etc. Pumping whiskey, wine, rums, juices and ciders. AGRICULTURAL Transferring liquid fertilizers, herbicides and pesticides.
The 30540 series pumps are suitable for use in the Chemical industry, with alcohols, esters and other organic based solutions. Abrasive suspensions are also passed through these pumps, typical examples being sols, slurries and emulsions. Other pumping applications include inks, dyes, paints, viscous adhesives and plasticisers. These mid duty pumps are ideally suited to process transfer duties, filtrations, sampling, mixing and metering.For pedestal mount models operating at 1750 RPM, select a 5 hp motor with an appropriate service factor. For standard pressure impellers, the motor must supply 21 ftlbs or 38 ftlbs of torque minimum for forward and reverse operation respectively.
