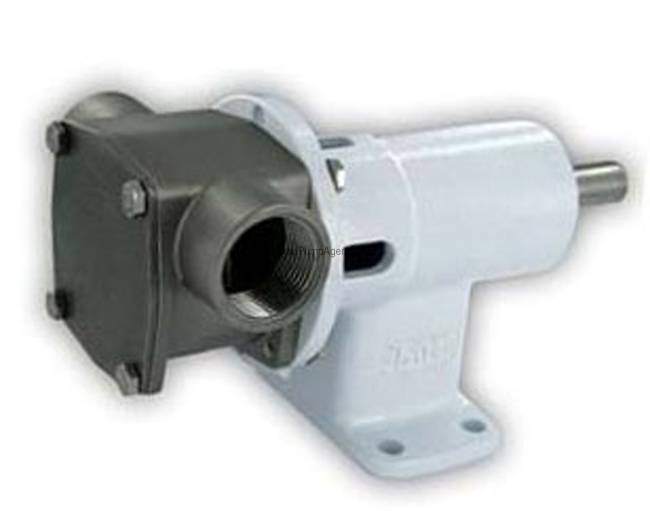

Jabsco # 30530-0112 Stainless Steel Pedestal Pump

Jabsco Pump 30530-0112

Jabsco # 30530-0112

Jabsco catalog # 30530-0112, Stainless Steel Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a High Pressure EPDM Impeller and Tungsten Carbide Mechanical Seal. Ports are 1-1/2 Inch NPT Internal.

Price : $ 6016.04

Qty :

Same Day (2 in stock)

Click Here for PARTS


Product Information :

The Jabsco 30530-0112 is a 316 stainless steel Flexible Impeller pump with a high pressure EPDM Impeller, Tungsten Carbide Mechanical Seal, 1-1/2 Inch NPT Internal Ports, bare shafted pedestal pump end only without a Motor. This pump can be used where single or variable speed operation and 316 stainless steel material are desirable. Self-priming, 50 GPM (189 LPM) flow and debris-tolerant. These pumps are self-priming and will prime at low or high speeds. For a vertical dry suction lift of 6 feet (1.8m) (pumps with EPDM impellers), a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet (6.7m) when wet. Be sure suction lines are airtight or pump will not self-prime. This unit depends on the liquid pumped for lubrication. Do not run this pump dry for more than 30 seconds as a lack of liquid will damage the impeller. The operating temperature limits of the pump depend on the impeller compound. The following range applies for EPDM impellers : 45 degrees F to 185 degrees F (7 degrees C to 85 degrees C). An EPDM impeller is good for hygienic applications and some keytone solvents. The tungsten carbide seal in this pump is good for when pumping highly-corrosive or abrasive fluids. For pedestal mount models (30530-0xxx) operating at 1750 rpm, select a 7.5 HP motor for these high-pressure impellers, with an appropriate service factor. For high-pressure impellers, the motor must supply 26ft-lbs of torque minimum for forward operation, and 40ft-lbs of torque minimum for reverse operation.

Do not pump gasoline or other flammable liquids. Do not run dry.

Features :

Pump Body:
316 Stainless Steel
High Pressure EPDM
Shaft Seal:
Tungsten Carbide Mechanical Seal
Port Size:
Ports are 1-1/2 Inch NPT Internal

Product Specs :

Open Flow of 50 GPM .

Servicing and clean out is a simple operation.

Pulsation Free Flow: Delivers a smooth even flow.

Non-Shear Action: Will handle delicate fluids.

Hard Solid Handling: Passes hard solids or abrasives with minimal wear or damage.

Parts and Accessories for Jabsco model 30530-0112

Impeller :

Catalog # 8983-0002, Impeller, EPDM, High Pressure

Price: $ 388.58

Qty :

Can Ship : Same Day (3 in stock)

Shaft Seal :

Catalog # 18753-0252, Mechanical Seal, Tungsten Carbide/Viton

Price: $ 716.15

Qty :

Can Ship : Same Day (4 in stock)

Casing frozen or cracked ? New Pump Casing :

Catalog # 18753-0191, Pump Body, Stainless Steel

Price: $ 1031.20

Qty :

Can Ship : Same Day (5 in stock)


This Stainless Steel Jabsco flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. It operates at low or high speeds, can be mounted at any angle and pumps in either direction with equal efficiency. Typical Applications for this pump are Circulating and transferring, velocitymixing, pumping machine tool coolants, return spill, sump drainage, chemicals, pharmaceuticals, soap, liquors, ink, dyes, alcohol, dilute acids, tanning liquors, glycerine, brine, etc. Processing medicines, lotions and preparations. Filtering pharmaceutical solutions. Transferring and applying starches, sizes, etc. Circulating and processing wood pulp slurries. Transfer brines, vinegar, syrups during processing, liquids containing solids in suspension such as chopped tomatoes, nuts. etc. Removal of distillery wort and brewery slop. Processing viscous materials such as peanut butler, mayonnaise, ketchup, honey, etc. Pumping whiskey, wine and rums. Transferring liquid fertilizers and components.
