Jabsco # 30520-9001 Pump End Kit Only
Jabsco # 30520-9001

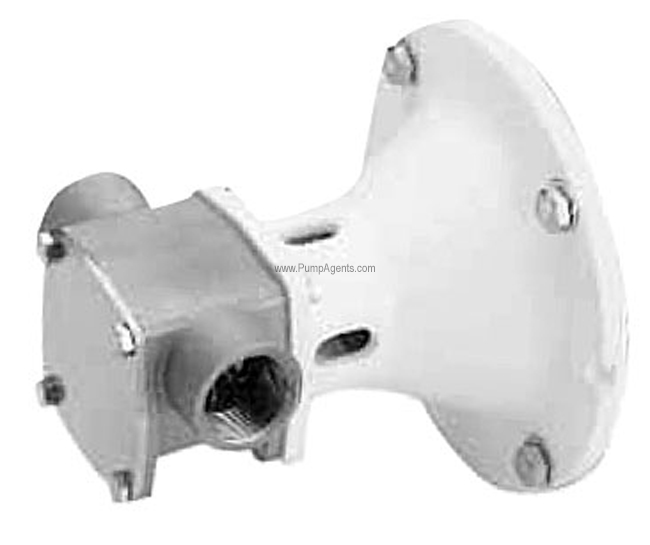

Jabsco catalog # 30520-9001, Pump End Kit Only. 316 Stainless Steel Construction, with a Neoprene Impeller and Carbon/Ceramic Mechanical Seal. Pump is Close Coupled to a Motor. Ports are 1 Inch NPT Internal.
Price : $ 2497.98
Product Information :
The Jabsco 30520-9001 is a 316 stainless steel Flexible Impeller pump kit with a Neoprene Impeller, Carbon/Ceramic Mechanical Seal, replacement pump end kit only without a Motor. This is a replacement pump end kit only for the 30520 Stainless Steel series with everything but the motor. For pump head-only models (30520-2xxx), select NEMA H145 TC-frame C-face motor rated at 1-1/2 HP at 1750 rpm with appropriate service factor. Motor must handle high-axial loads. Front ball bearing locked against axial movement is recommended. Motor must deliver 4.8ft-lbs and 11.2ft-lbs torque minimum in forward and reverse directions, respectively. Use only capacitor-start motors.
Features :
Product Specs :
Gentle, low-shear action for delicate products.
Type 316 stainless steel body, cover and shaft.
Easy to service and maintain.
Handles hard and soft solids without clogging.
Non pulsating flow.
Immediate self priming
Handling a wide viscosity range
Operating equally well at low and high speeds
Capable of transferring abrasive laden or air entrained liquids
Able to transfer fluids with solids
Compact size
Can drain even the last few ounces of liquid from a container
Parts and Accessories for Jabsco model 30520-9001
Impeller :
Catalog # 14282-0001, Impeller, Standard Pressure - Neoprene
Price: $ 114.15
