Jabsco # 30520-4004 Pump and Motor 1-1/2 HP

Jabsco Pump 30520-4004

Jabsco # 30520-4004

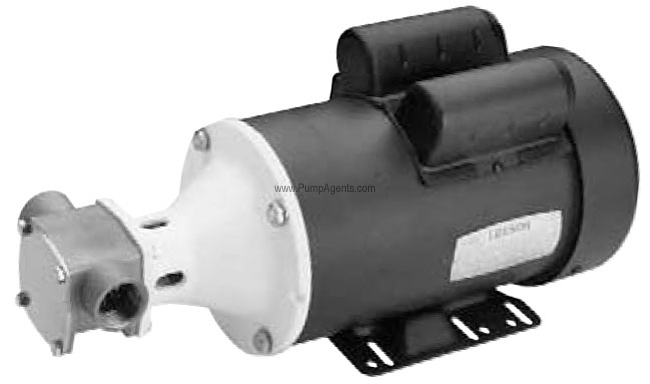

Jabsco catalog # 30520-4004, Stainless Steel Pump and Motor unit. 316 Stainless Steel Construction, with a Viton Impeller and Carbon/Ceramic Mechanical Seal. Pump is Close Coupled to a 1-1/2 Horsepower, 115/230 Volts, TEFC (Totally Enclosed Fan Cooled) Motor. Ports are 1 Inch NPT Internal.

Price : $ 3579.85

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 30520-4004 is a 316 stainless steel Flexible Impeller pump with a Viton Impeller, Carbon/Ceramic Mechanical Seal, coupled to a 1-1/2 Horsepower, 115/230 Volts, TEFC, 60 HZ Motor. SELF-PRIMING Primes at low or high speeds. For vertical dry suction lift of 10 feet, a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. Be sure suction lines are airtight or pump will not self-prime. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: Viton - 60 degrees to 180 degrees F (15 degrees to 82 degrees C). Stainless Steel flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained liquids. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscousity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. Stainless Steel flexible impeller pumps have the design features and materials suitable for pumping Corrosive chemicals, alcohols and solutions, Inks, dyes, paints and pigments, Viscous adhesives, thickeners and raw materials.

RUNNING DRY Unit depends on liquid pumped for lubrication. DO NOT RUN DRY for more than 30 seconds. Lack of liquid will damage the impeller and seal.

Features :

Pump Body:
316 Stainless Steel
Impeller:
Viton
Shaft Seal:
Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 1 Inch NPT Internal
Motor Specs :
1-1/2 Horsepower, 115/230 Volts, TEFC (Totally Enclosed Fan Cooled).

Product Specs :

Gentle, low-shear action for delicate products.

Type 316 stainless steel body, cover and shaft.

Easy to service and maintain.

Handles hard and soft solids without clogging.

Non pulsating flow.

Immediate self priming

Handling a wide viscosity range

Operating equally well at low and high speeds

Capable of transferring abrasive laden or air entrained liquids

Able to transfer fluids with solids

Compact size

Can drain even the last few ounces of liquid from a container


Parts and Accessories for Jabsco model 30520-4004


Impeller :

Catalog # 14282-0004, Impeller, Standard Pressure - Viton

Price: $ 153.62

Qty :

Can Ship : Same Day (6 in stock)


Shaft Seal :

Catalog # 18753-0246, Mechanical Seal, Viton/Carbon/Ceramic, less Seal Seat

Price: $ 408.74

Qty :

Can Ship : Same Day (1 in stock)

Applications

INDUSTRIAL Circulating and transferring, velocity mixing, pumping machine tool coolants, spill return, sump drainage, chemicals, pharmaceuticals, soap, liquors, ink, dyes, alcohol, dilute acids, tanning liquors, glycerine, brine, etc. PHARMACEUTICAL Processing medicines, lotions and preparations. Filtering pharmaceutical solutions. Filling line supply pump. PAPER PROCESSING Transferring and applying starches, sizes, etc. Circulating and processing wood pulp slurries. FOOD, BEVERAGE and DAIRY Transfer brines, vinegar, syrups during processing, liquids containing solids in suspension such as chopped tomatoes, nuts, etc. Removal of distillery wort and brewery slop. Processing viscous materials such as peanut butter, mayonnaise, ketchup, honey, etc. Pumping whisky, wine, rums, juices and ciders. AGRICULTURAL Transferring liquid fertilizers, herbicides and pesticides.
