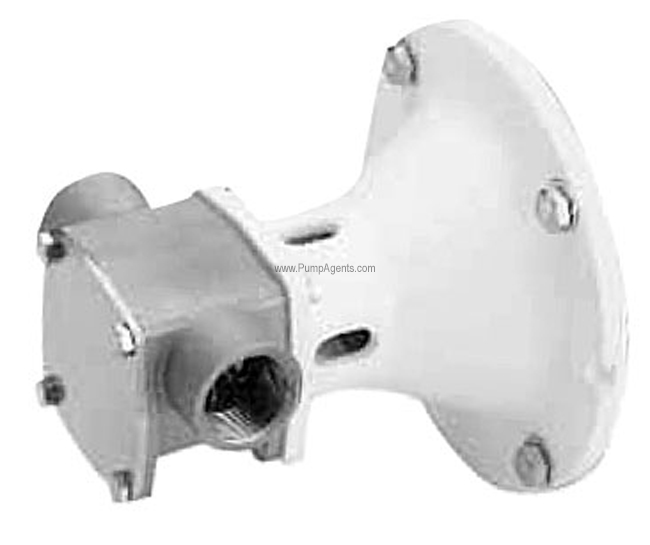

Jabsco part # 30520-2101

Jabsco Pump 30520-2101

Jabsco # 30520-2101

Jabsco catalog # 30520-2101, Pump End Only, replacement pump end only without a motor. 316 Stainless Steel Construction, with a Neoprene Impeller and Tungsten Carbide Mechanical Seal. Ports are 1 Inch NPT Internal.

Price : $ 3509.90

Qty :

Same Day (2 in stock)

Click Here for PARTS


Product Information :

The Jabsco 30520-2101 is a 316 stainless steel Flexible Impeller pump with a Neoprene Impeller, Tungsten Carbide Mechanical Seal, replacement pump end kit only without a Motor. This is a replacement pump end only for the 30520 Stainless Steel series with everything but the motor. For pump head-only models (30520-2xxx), select NEMA H145 TC-frame C-face motor rated at 1-1/2 HP at 1750 rpm with appropriate service factor. Motor must handle high-axial loads. Front ball bearing locked against axial movement is recommended. Motor must deliver 4.8ft-lbs and 11.2ft-lbs torque minimum in forward and reverse directions, respectively. Use only capacitor-start motors.

Features :

Pump Body:
316 Stainless Steel
Shaft Seal:
Tungsten Carbide Mechanical Seal
Port Size:
Ports are 1 Inch NPT Internal

Product Specs :

Gentle, low-shear action for delicate products.

Type 316 stainless steel body, cover and shaft.

Easy to service and maintain.

Handles hard and soft solids without clogging.

Non pulsating flow.

Immediate self priming

Handling a wide viscosity range

Operating equally well at low and high speeds

Capable of transferring abrasive laden or air entrained liquids

Able to transfer fluids with solids

Compact size

Can drain even the last few ounces of liquid from a container

Parts and Accessories for Jabsco model 30520-2101

Impeller :

Catalog # 14282-0001, Impeller, Standard Pressure - Neoprene

Price: $ 116.60

Qty :

Can Ship : Same Day (41 in stock)
