Jabsco catalog # 30520-2004, Pump End Only, replacement pump end only without a motor. 316 Stainless Steel Construction, with a Viton Impeller and Carbon/Ceramic Mechanical Seal. Ports are 1 Inch NPT Internal.
Price : $ 3058.64

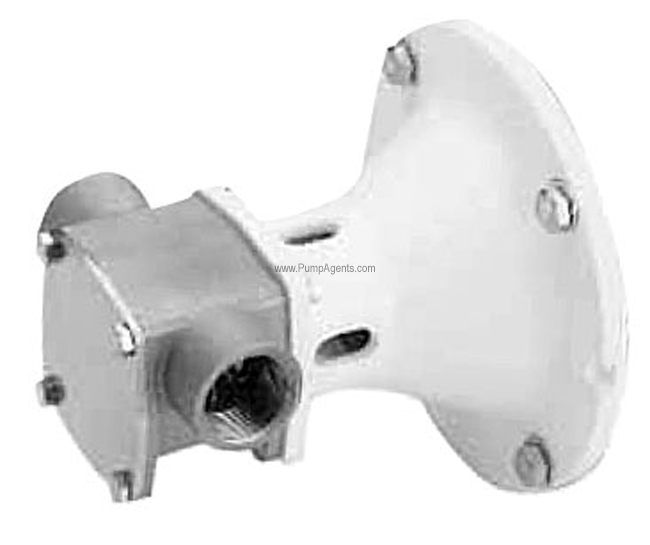

The Jabsco 30520-2004 is a 316 stainless steel Flexible Impeller pump kit with a Viton Impeller, Carbon/Ceramic Mechanical Seal, replacement pump end kit only without a Motor. This is a replacement pump end only for the 30520 Stainless Steel series with everything but the motor. For pump head-only models (30520-2xxx), select NEMA H145 TC-frame C-face motor rated at 1-1/2 HP at 1750 rpm with appropriate service factor. Motor must handle high-axial loads. Front ball bearing locked against axial movement is recommended. Motor must deliver 4.8ft-lbs and 11.2ft-lbs torque minimum in forward and reverse directions, respectively. Use only capacitor-start motors.
Gentle, low-shear action for delicate products.
Type 316 stainless steel body, cover and shaft.
Easy to service and maintain.
Handles hard and soft solids without clogging.
Non pulsating flow.
Immediate self priming
Handling a wide viscosity range
Operating equally well at low and high speeds
Capable of transferring abrasive laden or air entrained liquids
Able to transfer fluids with solids
Can drain even the last few ounces of liquid from a container
Catalog # 14282-0004, Impeller, Standard Pressure - Viton
Price: $ 153.62
