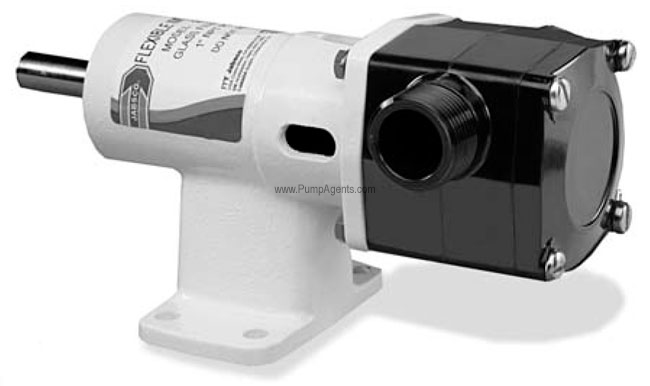

Jabsco catalog # 30520-1112, Epoxy Pedestal Pump, bare shafted pedestal pump end only without a Motor. Epoxy Plastic Construction, with a High Pressure EPDM Impeller and Tungsten Carbide Mechanical Seal. Ports are 1 Inch NPT External.
Price : $ 3047.06
The Jabsco 30520-1112 is an epoxy plastic Flexible Impeller pump with an EPDM Impeller, Tungsten Carbide Mechanical Seal, 1 Inch NPT External Ports, bare shafted pedestal pump end only without a Motor. Epoxy Plastic flexible impeller pumps are useful where self-priming is required and are also very effective in pumping acids and alkalis. The corrosive nature of the electro plating process makes these pumps ideally suited to stand the harsh environments they may be exposed to. Typical chemicals used may include sulfuric acid, hydrogen peroxide and aqua regia. They are also popular in the photographic industry as they are ideally suited at pumping photographic development chemicals . At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscousity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials.
RUNNING DRY Unit depends on liquid pumped for lubrication. Do not run dry for more than 30 seconds. Lack of liquid will damage the impeller.
Handles hard and soft solids without clogging.
Capable of transferring abrasive laden or air entrained liquids
Able to transfer fluids with solids
Gentle, low-shear action for delicate products.
Easy to service and maintain.
Non pulsating flow.
Immediate self priming
Handling a wide viscosity range
Operating equally well at low and high speeds
Can drain even the last few ounces of liquid from a container
Catalog # 8840-0002, Impeller, High Pressure - EPDM
Price: $ 186.53
Shaft Seal :
Catalog # 18753-0248, Mechanical Seal, Tungsten Carbide - Viton
Price: $ 633.67
Casing frozen or cracked ? New Pump Casing :
Catalog # 18753-0190, Body
Price: $ 444.38
INDUSTRIAL Circulating and transferring corrosive liquids. Returning spilled liquids to process, transferring foaming solutions with entrained air, such as soaps and detergents. Sampling and pilot plant installations. Handles pure solutions, acids, alkalies, photo chemicals, dyes, detergents, waxes, gels, solutions with suspended solids and emulsions. METAL PLATING Filtration of plating solutions. Filling and emptying vats. Adding chemicals for pH balance. PHARMACEUTICAL Processing lab solutions, medicines, lotions and preparations. Filtering pharmaceutical solutions. AGRICULTURAL Transferring liquid fertilizers, herbicides and pesticides.
INSTALLATION Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pumps intake and discharge ports. Pump is normally assembled at factory for clockwise rotation.SELFPRIMING Primes at low or high speeds. For vertical dry suction lift of 7 feet EPDM, a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply EPDM 45 degrees to 185 degrees F 7 degrees to 85 degrees C.
