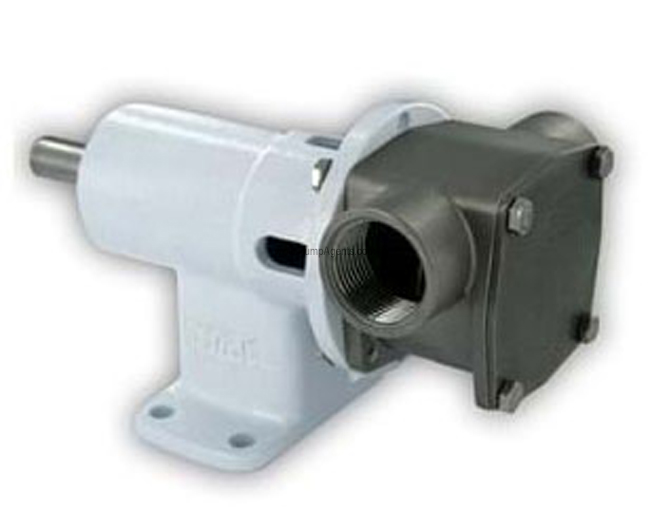

Jabsco # 30520-0103 Pedestal Pump

Jabsco Pump 30520-0103

Jabsco # 30520-0103

Jabsco catalog # 30520-0103, Industrial Stainless Steel Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a Standard Pressure Nitrile Impeller and Nitrile/Tungsten Carbide/Ceramic Seal. Ports are 1 Inch NPT Internal.

Price : $ 3508.52

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 30520-0103 is a 316 stainless steel Flexible Impeller pump with a Nitrile Impeller, Nitrile/Tungsten Carbide/Ceramic seal, 1 Inch Ports, bare shafted pedestal pump end only without a Motor. Use where single or variable speed operation is desirable. Self-priming, 22 gpm flow, debris tolerant. Nitrile impeller is ideal for oil based products. TEMPERATURES The operating temperature limits of the pump depend on the impeller compound. The following ranges apply: Nitrile - 50 degrees to 180 degrees F (10 degrees to 82 degrees C). SELF-PRIMING Primes at low or high speeds. For vertical dry suction lift of 10 feet (neoprene/nitrile) 7 feet (viton/EPDM), a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet when wet. Be sure suction lines are airtight or pump will not self-prime. For pedestal mount 30520 series pumps operating at 1750 RPM, select 1-1/2 hp or 3 hp motor for standard or high pressure impellers respectively, with an appropriate service factor. For high pressure impellers, the motor must supply 7.9 ft-lbs or 16.3 ft-lbs of torque minimum for forward and reverse operation respectively.

Do not pump gasoline or other flammable liquids. RUNNING DRY Unit depends on liquid pumped for lubrication. Do not run dry for more than 30 seconds. Lack of liquid will damage the impeller.

Features :

Pump Body:
316 Stainless Steel
Impeller:
Standard Pressure Nitrile
Shaft Seal:
Nitrile/Tungsten Carbide/Ceramic
Port Size:
Ports are 1 Inch NPT Internal

Product Specs :

Easy to service and maintain.

Will tolerate abrasive wear

Handles hard and soft solids without clogging.

Non pulsating flow


Parts and Accessories for Jabsco model 30520-0103


Impeller :

Catalog # 14282-0003, Impeller, Standard Pressure - Nitrile

Price: $ 116.60

Qty :

Can Ship : Same Day (42 in stock)


Casing frozen or cracked ? New Pump Casing :

Catalog # 18753-0189, Body, Stainless Steel, 1 Inch NPT Ports

Price: $ 697.00

Qty :

Can Ship : Same Day (15 in stock)

Applications

INDUSTRIAL Circulating and transferring, velocitymixing, pumping machine tool coolants, spill return, sump drainage, chemicals, phar ma ceu ti cals, soap, liquors, ink, dyes, alcohol, dilute acids, tanning liquors, glycerine, brine, etc. PHARMACEUTICAL Processing medicines, lotions and preparations. Filtering pharmaceutical solutions. Filling line supply pump. PAPER PROCESSING Transferring and applying starches, sizes, etc. Circulating and processing wood pulp slurries. FOOD, BEVERAGE and DAIRY Transfer brines, vinegar, syrups during processing, liquids containing solids in suspension such as chopped tomatoes, nuts, etc. Removal of distillery wort and brewery slop. Processing viscous materials such as peanut butter, may on naise, ketchup, honey, etc. Pumping whiskey, wine, rums, juices and ciders. AGRICULTURAL Transferring liquid fertilizers, herbicides and pesticides. NOTE Curves show approximate headflow for new pumps with neoprene impeller pumping water. Capacities should be reduced approximately 10 percent with nitrile standard pressure impellers and approximately 20 percent for high pressure viton and EPDM impellers.
