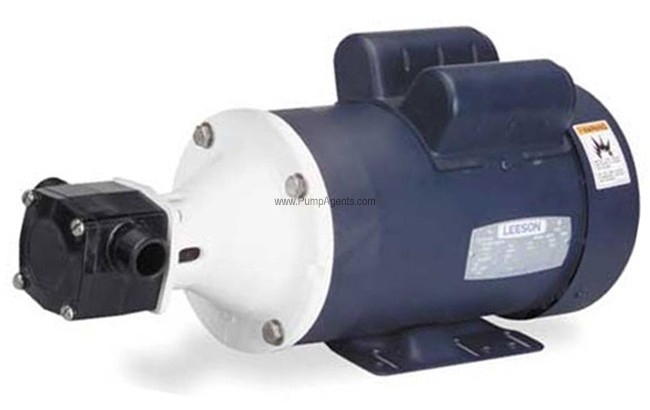

Jabsco catalog # 30510-5002, Epoxy Plastic Flexible Impeller Pump and Motor unit. Epoxy Plastic Construction, with an EPDM Impeller and Nitrile/Carbon/Ceramic Mechanical Seal. Pump is Close Coupled to a 3/4 Horsepower, 1750 RPM, 115 Volts, Single, TEFC (Totally Enclosed Fan Cooled) Motor. Ports are 3/4 Inch NPT External.
Price : $ 2378.84
The Jabsco 30510-5002 is an epoxy plastic Flexible Impeller pump with an EPDM Impeller, Nitrile/Carbon/Ceramic Mechanical Seal, 3/4 Inch NPT External Ports, coupled to a 3/4 Horsepower, 1750 RPM, 115 Volts, Single Phase, TEFC, 60 HZ Motor. These pumps are self-priming and will prime at low or high speeds. For a vertical dry suction lift of 6 feet (1.8m) a minimum of 860 RPM is required. Pump will produce suction lift up to 22 feet (6.7m) when wet. Be sure suction lines are airtight or pump will not self-prime. This unit depends on the liquid pumped for lubrication. Do not run this pump dry for more than 30 seconds as a lack of liquid will damage the impeller. The operating temperature limits of the pump depend on the impeller compound. The following ranges apply for EPDM impellers : 45 degrees F to 185 degrees F (7 degrees C to 85 degrees C). An EPDM impeller is good for hygienic applications and some keytone solvents. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Pump is normally assembled at factory for clockwise rotation (looking at end cover).
Motor is NOT explosion-proof. Do not use where flammable vapors are present. Do not run dry.
Open Flow of 8 GPM
These pumps can be found in use pumping acids and alkalis.
The corrosive nature of the electro plating process makes these pumps ideally suited to stand the harsh environments they may be exposed to. Typical chemicals used may include sulphuric acid, hydrogen peroxide and aqua regia.
They are also popular in the photographic industry as they are ideally suited at pumping photographic development chemicals.
A high resistance thermosetting plastic pump body.
Servicing and clean out is a simple operation.
Pulsation Free Flow: Delivers a smooth even flow
Non-Shear Action: Will handle delicate fluids
Hard Solid Handling: Passes hard solids or abrasives with minimal wear or damage
Catalog # 7614-0002, Impeller, EPDM, Standard Pressure
Price: $ 124.81
Shaft Seal :
Catalog # 18753-0241, Mechanical Seal, Carbon - Nitrile
Price: $ 93.57
Casing frozen or cracked ? New Pump Casing :
Catalog # 18753-0188, Body, Epoxy, with 3/4 Inch external ports
Price: $ 390.90
These units are inexpensive, versatile and adaptable for many applications. This pump's gentle pumping action gives excellent suspended solids handling capability, and it can pump very abrasive media. This pump can pump foams, emulsions, gas enriched aqueous materials, and is capable of pumping across a wide range of viscosities. Typical Applications for this pump are pumping Circulating and transferring corrosive liquids, returning spilled liquids to process, transferring foaming solutions with entrained air, such as soaps and detergents, sampling and pilot plant installations. Handles pure solutions, acids, alkalies, photochemicals, dyes, detergents, waxes, gels, solutions with suspended solids and emulsions. This pump is a good selection for filtration of plating solutions, filling and emptying vats, adding chemicals for pH balance, processing lab solutions, medicines, lotions and preparations, filtering pharmaceutical solutions, and transferring liquid fertilizers, herbicides and pesticides.
