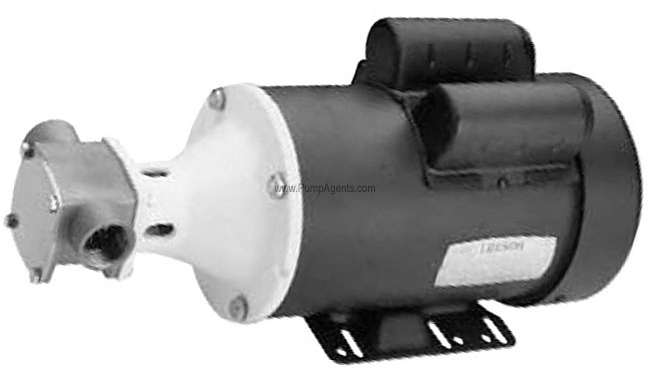

Jabsco # 30510-4002 Stainless Steel Close-Coupled Pump 3/4 HP

Jabsco Pump 30510-4002

Jabsco # 30510-4002

Jabsco catalog # 30510-4002, Stainless Steel Close-Coupled Pump and Motor unit. 316 Stainless Steel Construction, with an EPDM Impeller and Carbon/Ceramic Mechanical Seal. Pump is Close Coupled to a 3/4 Horsepower, 1750 RPM, 115 Volts, Single, TEFC (Totally Enclosed Fan Cooled) Motor. Ports are 3/4 Inch NPT Internal.

Price : $ 3108.50

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 30510-4002 is a 316 stainless steel Flexible Impeller pump with an EPDM Impeller, Carbon/Ceramic Mechanical Seal, 3/4 Inch NPT Internal Ports, coupled to a 3/4 Horsepower, 1750 RPM, 115 Volts, Single Phase, TEFC, 60 HZ Motor. This pump can be used where single or variable speed operation and 316 stainless steel material are desirable. Self-priming, 8 GPM (30 LPM) flow and debris-tolerant. This pump has a vertical dry suction lift of up to 6 feet with the EPDM impeller, and will produce suction lift up to 22 feet when wetted. Be sure suction lines are airtight or pump will not self-prime. Temperature limits for EPDM impellers are 45 degrees F (7 degrees C) to 185 degrees F (85 degrees C).
Stainless Steel flexible impeller pumps are especially useful where self-priming is required and are also very effective in pumping viscous or air-entrained liquids. At lower speeds, they also handle delicate liquids very well owing to their gentle pumping action. Virtually any liquid with viscosity up to 20,000 cps can be pumped as long as there is chemical compatibility with the pump materials. Stainless Steel flexible impeller pumps have the design features and materials suitable for pumping Corrosive chemicals, alcohols and solutions, Inks, dyes, paints and pigments, Viscous adhesives, thickeners and raw materials.

Do not pump gasoline or other flammable liquids. Motor is not explosion-proof. Do not run dry.

Features :

Pump Body:
316 Stainless Steel
Impeller:
EPDM
Shaft Seal:
Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 3/4 Inch NPT Internal
Motor Specs :
3/4 Horsepower, 1750 RPM RPM, 115 Volts, Single, TEFC (Totally Enclosed Fan Cooled).

Product Specs :

Open Flow of 8.2 GPM

Type 316 stainless steel body, cover and shaft.

Immediate self priming.

Easy to service and maintain.

Handles hard and soft solids without clogging.

Gentle, low-shear action for delicate products.

Non pulsating flow.

Handling a wide viscosity range.

Operating equally well at low and high speeds.

Capable of transferring abrasive laden or air entrained liquids.

Able to transfer fluids with solids.

Compact size.

Can drain even the last few ounces of liquid from a container.

Servicing and clean out is a simple operation.


Parts and Accessories for Jabsco model 30510-4002


Impeller :

Catalog # 7614-0002, Impeller, EPDM, Standard Pressure

Price: $ 124.81

Qty :

Can Ship : Same Day (17 in stock)


Shaft Seal :

Catalog # 18753-0242, Mechanical Seal, Carbon - Viton

Price: $ 315.06

Qty :

Can Ship : Same Day (1 in stock)

Applications

Industrial applications for this pump include Circulating and transferring, velocitymixing, pumping machine tool coolants, spill return, sump drainage, chemicals, pharmaceuticals, soap, liquors, ink, dyes, alcohol, dilute acids, tanning liquors, glycerine, brine, etc. Pharmaceutical applications for this pump include Processing lab solutions, medicines, lotions and preparations. Filtering pharmaceutical solutions, Filling line supply pump. Paper Processing applications for this pump include Transferring and applying starches, sizes, etc. Circulating and processing wood pulp slurries. Food, Beverage and Dairy applications for this pump include Transfer brines, vinegar, syrups during processing, liquids containing solids in suspension such as chopped tomatoes, nuts, etc. Removal of distillery wort and brewery slop, Processing viscous materials such as peanut butter, mayonnaise, ketchup, honey, etc. Pumping whiskey, wine, rums, juices and ciders. Agricultural applications for this pump include Transferring liquid fertilizers, herbicides and pesticides.
