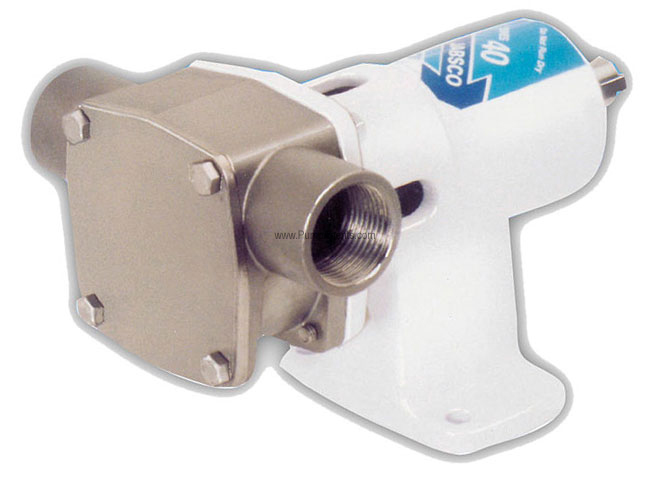

Jabsco catalog # 30510-0114, Stainless Steel Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a High Pressure Viton Impeller and Viton/Tungsten Carbide/Ceramic Seal. Ports are 3/4 Inch NPT Internal.
Price : $ 3367.25
The Jabsco 30510-0114 is a 316 stainless steel Flexible Impeller pump with a Viton Impeller, Viton/Tungsten Carbide/Ceramic seal, 3/4 Inch NPT Internal Ports, bare shafted pedestal pump end only without a Motor. The Viton impeller is usually used for hydrocarbons and most solvents. The Tungsten Carbide seal is used when pumping highly corrosive or abrasive fluids. Use where single or variable speed operation and 316 Stainless Steel material is desirable. Self-priming, 8 gpm flow, and debris tolerant. For pedestal mount models operating at 1750 RPM, select 3/4 HP motor for standard impellers or 1-1/2 HP for high pressure impellers, with an appropriate service factor. For high pressure impellers, the motor must supply 3 ft-lbs of torque minimum for standard impellers or 6.9 ft-lbs of torque minimum for high pressure impellers for forward and reverse operation.
RUNNING DRY Unit depends on liquid pumped for lubrication. Do not run dry for more than 30 seconds. Lack of liquid will damage the impeller. Do not pump gasoline or other flammable liquids.
No need for a Pressure Relief Valve.
Gentle pumping action gives excellent suspended solids handling capability.
Pump can be mounted above or below the liquid source.
Flow rate is exponentially linear to impeller speed.
Capable of pumping across a wide range of viscosities.
Can pump very abrasive media.
Can pump foams, emulsions and gas enriched aqueous materials.
Operates at high and low motor speeds.
Will not airlock; continues to operate even when air passes through the system.
Pumping is bi-directional due to the symmetry of the pump configuration.
Will pump out until the last drop of media has gone.
Have a low lifetime cost; few parts need to be replaced over its lifetime.
Compact design still delivers high flow rates.
Catalog # 8980-0002, Impeller, EPDM, High Pressure
Price: $ 209.85
Shaft Seal :
Catalog # 18753-0244, Mechanical Seal, Tungsten Carbide - Viton
Price: $ 524.82
Casing frozen or cracked ? New Pump Casing :
Catalog # 18753-0187, Body, Stainless Steel, 3/4 Inch NPT Ports
Price: $ 782.65
INDUSTRIAL Circulating and transferring, velocitymixing, pumping machine tool coolants, spill return, sump drainage, chemicals, pharmaceuticals, soap, liquors, ink, dyes, alcohol, dilute acids, tanning liquors, glycerine, brine, etc. PHARMACEUTICAL Processing medicines, lotions and preparations. Filtering pharmaceutical solutions. Filling line supply pump. PAPER PROCESSING Transferring and applying starches, sizes, etc. Circulating and processing wood pulp slurries. FOOD, BEVERAGE and DAIRY Transfer brines, vinegar, syrups during processing, liquids containing solids in suspension such as chopped tomatoes, nuts, etc. Removal of distillery wort and brewery slop. Processing viscous materials such as peanut butter, mayonnaise, ketchup, honey, etc. Pumping whiskey, wine, rums, juices and ciders. AGRICULTURAL Transferring liquid fertilizers, herbicides and pesticides.
