Jabsco # 3010-8414 Epoxy Pedestal Pump

Jabsco Pump 3010-8414

Jabsco # 3010-8414

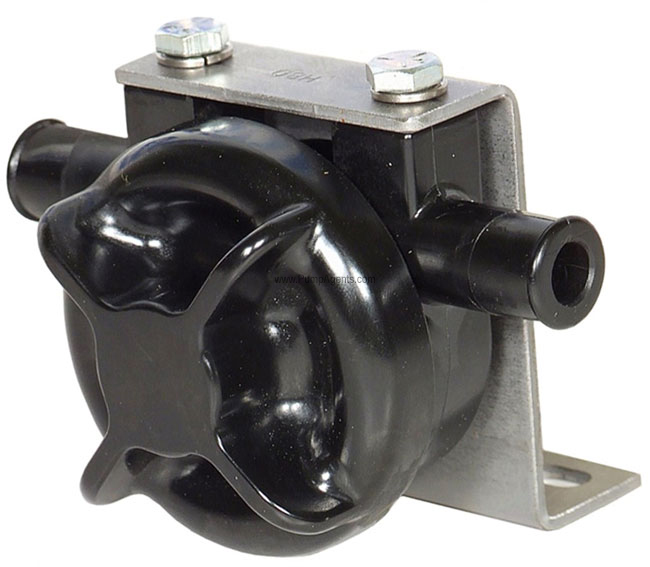

Jabsco catalog # 3010-8414, Epoxy Pedestal Pump, bare shafted pedestal pump end only without a Motor. Phenolic Plastic Construction, with a Viton Impeller and Lip Type Seal. Ports are 5/8 Inch ID Hose Barb.

Price : $ 867.90

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

The Jabsco 3010-8414 is a phenolic plastic Flexible Impeller pump with a Viton Impeller, Lip Type seal, 5/8 Inch ID Hose Barb Ports, bare shafted pedestal pump end only without a Motor. These pumps can be used where single or variable speed operation and plastic-epoxy material is desirable. These pumps are self-priming, with a nominal 2.2 gallons/min (10 Litres/min) at 1500rpm flow, are Self-priming from dry up to 4.9 feet (1.5m) and are debris-tolerant. The only metallic parts in this Flexible Impeller Pump are the shaft and drive pin. The shaft and drive pin in this pump are 316 SS - Type 18-8 stainless steel. This possesses excellent corrosion resistance to a wide range of chemical solutions including ammonia, barium, many cyanide solutions, silver nitrate, photographic solutions including fix and developer. The operating temperature limits of the pump depend on the impeller compound. The following ranges apply for the Viton impeller in this pump : 60 degrees F to 180 degrees F (15 degrees C to 82 degrees C). Be sure suction lines are airtight or pump will not self-prime. This unit depends on the liquid pumped for lubrication. Do not run this pump dry for more than 30 seconds as a lack of liquid will damage the impeller.

Features :

Pump Body:
Phenolic Plastic
Impeller:
Viton
Shaft Seal:
Lip Type
Port Size:
Ports are 5/8 Inch ID Hose Barb

Product Specs :

Flow rate: Nominal 10 Litres/min at 1500rpm.

Self-priming from dry up to 1.5m .

Can pump in either direction.

Will not airlock.

Easy to service and maintain.

Inexpensive to buy and operate.

Will tolerate abrasive wear .

Handles hard and soft solids without clogging.


Parts and Accessories for Jabsco model 3010-8414

Applications

This pump is designed for Carboy and drum transfer, hazardous chemical transfer and recirculation, recirculation of descaling compounds through refrigeration and condenser coils, printed circuit etching, general laboratory transfer, photographic fixes and developers, barium transfer, transfer ammonia on blueprint machines, silver recovery, demineralized and distilled water.
