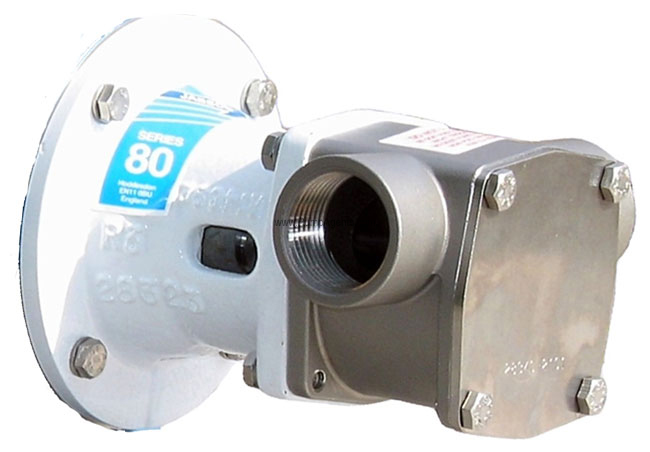

Jabsco # 28440-2115 Stainless Steel Pump Head Kit

Jabsco Pump 28440-2115

Jabsco # 28440-2115

Jabsco catalog # 28440-2115, Stainless Steel Pump Head Kit, replacement pump end only without a motor. 316 Stainless Steel Construction, with a Neoprene Impeller and Carbon/Ceramic Mechanical Seal. Ports are 1-1/2 Inch BSP.

Price : $ 2819.86

Qty :

2 Weeks (0 in stock)

Click Here for PARTS


Product Information :

The Jabsco 28440-2115 is a 316 stainless steel Flexible Impeller pump with a Neoprene Impeller, Carbon/Ceramic Mechanical Seal, 1-1/2 Inch BSP Ports, replacement pump end only without a Motor. These units are inexpensive, versatile and adaptable for many applications. This pump's gentle pumping action gives excellent suspended solids handling capability, and it can pump very abrasive media. This pump can pump foams, emulsions, gas enriched aqueous materials, and is capable of pumping across a wide range of viscosities.

Features :

Pump Body:
316 Stainless Steel
Shaft Seal:
Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 1-1/2 Inch BSP

Product Specs :

Self-primes from dry up to 16.4'

Flows up to 52.8 GPM

Pressure up to 58 psi

Handles hard or soft solids 0.4 Inch maximum diameter

Tolerates abrasive wear replaceable wearplate

Non-pulsating flow, proportional to speed

Handles viscosities up to 10,000 cP

Minimal shear to thixotropic fluids

Fits IEC standard motor B3/B14, frame 90

Easy to service and maintain

Parts and Accessories for Jabsco model 28440-2115

Impeller :

Catalog # 14346-0005B, Impeller, Neoprene

Price: $ 233.17

Qty :

Can Ship : Same Day (70 in stock)


The 28000 series pumps are suitable for use in the Chemical industry, with alcohols, esters and other organic based solutions. Abrasive suspensions are also passed through these pumps, typical examples being sols, slurries and emulsions. Other pumping applications include inks, dyes, paints, viscous adhesives and plasticisers. These mid duty pumps are ideally suited to process transfer duties, filtrations, sampling, mixing and metering. Typical Applications for this pump are pumping Acids and alkalis, compounds, copper sulphate, methyls, alcohols, Industrial chemicals, resins, oils, fatty acids, brine. Detergents, soaps, hydrogen peroxide, Paints, dyes, inks, varnishes, laquers, solvents, Transfer, filling, recirculation and agitation, spillage return, spraying, coating, filtration, Viscous, shearsensitive fluids, small hard and soft solids in suspension.
