Jabsco catalog # 28440-2112, Stainless Steel Pump Head Kit, replacement pump end only without a motor. 316 Stainless Steel Construction, with an EPDM Impeller and Carbon/Ceramic Mechanical Seal. Ports are 1-1/2 Inch BSP.
Price : $ 2819.86

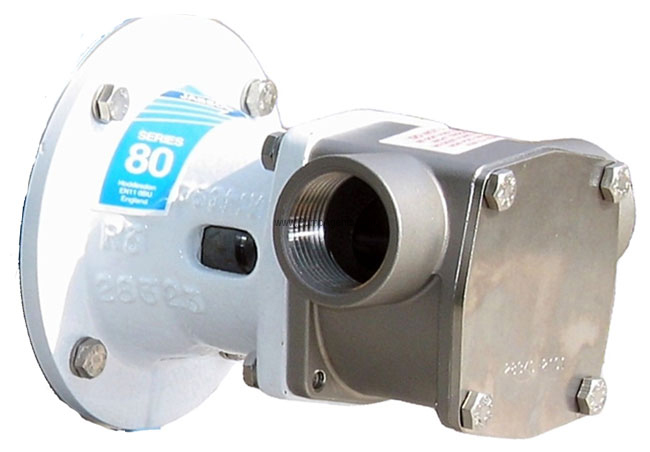

The Jabsco 28440-2112 is a 316 stainless steel Flexible Impeller pump with an EPDM Impeller, Carbon/Ceramic Mechanical Seal, 1-1/2 Inch BSP Ports, replacement pump end only without a Motor. These units are inexpensive, versatile and adaptable for many applications. This pump's gentle pumping action gives excellent suspended solids handling capability, and it can pump very abrasive media. This pump can pump foams, emulsions, gas enriched aqueous materials, and is capable of pumping across a wide range of viscosities.
Self-primes from dry up to 16.4'
Flows up to 52.8 GPM
Pressure up to 58 psi
Handles hard or soft solids 0.4 Inch maximum diameter
Tolerates abrasive wear replaceable wearplate
Non-pulsating flow, proportional to speed
Handles viscosities up to 10,000 cP
Minimal shear to thixotropic fluids
Fits IEC standard motor B3/B14, frame 90
Easy to service and maintain
Catalog # 14346-0002B, Impeller, EPDM
Price: $ 204.34
The 28000 series pumps are suitable for use in the Chemical industry, with alcohols, esters and other organic based solutions. Abrasive suspensions are also passed through these pumps, typical examples being sols, slurries and emulsions. Other pumping applications include inks, dyes, paints, viscous adhesives and plasticisers. These mid duty pumps are ideally suited to process transfer duties, filtrations, sampling, mixing and metering. Typical Applications for this pump are pumping Acids and alkalis, compounds, copper sulphate, methyls, alcohols, Industrial chemicals, resins, oils, fatty acids, brine. Detergents, soaps, hydrogen peroxide, Paints, dyes, inks, varnishes, laquers, solvents, Transfer, filling, recirculation and agitation, spillage return, spraying, coating, filtration, Viscous, shearsensitive fluids, small hard and soft solids in suspension.
