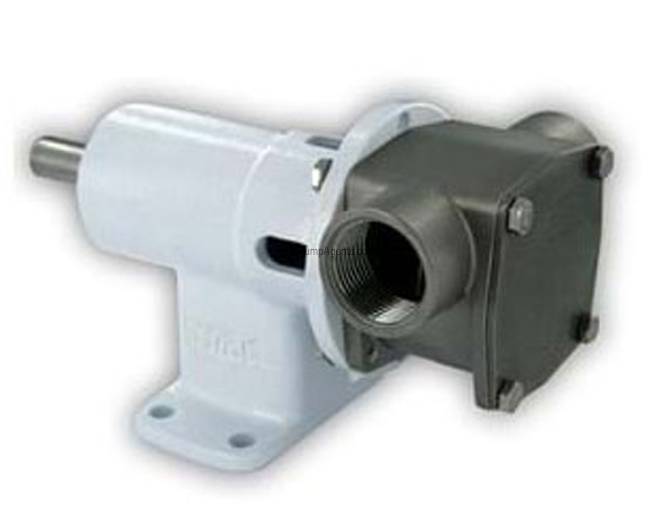

Jabsco # 28230-2223 Stainless Steel Flexible Impeller Pump

Jabsco Pump 28230-2223

Jabsco # 28230-2223

Jabsco catalog # 28230-2223, Stainless Steel Flexible Impeller Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a High Pressure Nitrile Impeller and Nitrile/Tungsten Carbide/Ceramic Mechanical Seal. Ports are 3/4 Inch BSP.

Price : Contact Us

Qty :

2 Weeks (0 in stock)

Click Here for PARTS


Product Information :

The Jabsco 28230-2223 is a 316 stainless steel Flexible Impeller pump with a high pressure Nitrile Impeller, Nitrile/Tungsten Carbide/Ceramic Mechanical Seal, 3/4 Inch BSP Ports, bare shafted pedestal pump end only without a Motor. These pumps can be used where single or variable speed operation and 316 Stainless Steel material is desirable. These pumps are self-priming, with a 10.6 GPM (40 LPM) flow and are debris-tolerant. These pumps are self-priming and will prime at low or high speeds. For a vertical dry suction lift of 10 feet (3m) a minimum of 860 RPM is required. Pump will produce suction lift up to 16.4 feet (5m) when wet. Be sure suction lines are airtight or pump will not self-prime. This unit depends on the liquid pumped for lubrication. Do not run this pump dry for more than 30 seconds as a lack of liquid will damage the impeller. The operating temperature limits of the pump depend on the impeller compound. The following ranges apply for Nitrile impellers : 50 degrees F to 180 degrees F (10 degrees C to 82 degrees C). A nitrile impeller is ideal for oil-based products. The tungsten carbide seal in this pump is good for when pumping highly-corrosive or abrasive fluids. Qty Part Number .

Features :

Pump Body:
316 Stainless Steel
High Pressure Nitrile
Shaft Seal:
Nitrile/Tungsten Carbide/Ceramic Mechanical Seal
Port Size:
Ports are 3/4 Inch BSP

Product Specs :

Flows up to 10.6 GPM

Pressure up to 43.5 psi

Handles hard or soft solids 0.2 Inch maximum diameter

Tolerates abrasive wear - replacable wearplate

Non pulsating flow, proportional to speed

Handles viscosities up to 4,000 centiPoise

Minimal shear to thixotropic fluids

Easy to service and maintain

Parts and Accessories for Jabsco model 28230-2223

Impeller :

Catalog # 8980-0023B, Impeller, High Pressure - Nitrile

Price: $ 97.24

Qty :

Can Ship : Same Day (4 in stock)


These units are inexpensive, versatile and adaptable for many applications. This pump's gentle pumping action gives excellent suspended solids handling capability, and it can pump very abrasive media. This pump can pump foams, emulsions, gas enriched aqueous materials, and is capable of pumping across a wide range of viscosities. Typical Applications for this pump are pumping Acids and alkalis, compounds, copper sulphate, methyls, alcohols, Industrial chemicals, resins, oils, fatty acids, brine. Detergents, soaps, hydrogen peroxide, Paints, dyes, inks, varnishes, laquers, solvents, Transfer, filling, recirculation and agitation, spillage return, spraying, coating, filtration, Viscous, shearsensitive fluids, small hard and soft solids in suspension.
