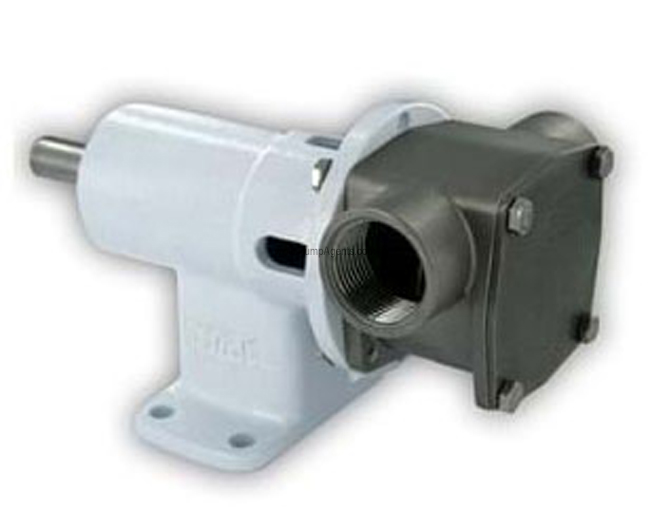

Jabsco # 28230-2124 Stainless Steel Flexible Impeller Pump
Jabsco # 28230-2124
Jabsco catalog # 28230-2124, Stainless Steel Flexible Impeller Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a High Pressure Viton Impeller and Viton/Carbon/Ceramic Mechanical Seal. Ports are 3/4 Inch BSP.
Price : Contact Us
Product Information :
Parts Page (click here)
Product Manual PDF (view)The Jabsco 28230-2124 is a 316 stainless steel Flexible Impeller pump with a high pressure Viton Impeller, Viton/Carbon/Ceramic Mechanical Seal, 3/4 Inch BSP Ports, bare shafted pedestal pump end only without a Motor. These pumps can be used where single or variable speed operation and 316 Stainless Steel material is desirable. These pumps are self-priming, with a 10.6 GPM (40 LPM) flow and are debris-tolerant. These pumps are self-priming and will prime at low or high speeds. For a vertical dry suction lift of 10 feet (3m) a minimum of 860 RPM is required. Pump will produce suction lift up to 16.4 feet (5m) when wet. Be sure suction lines are airtight or pump will not self-prime. This unit depends on the liquid pumped for lubrication. Do not run this pump dry for more than 30 seconds as a lack of liquid will damage the impeller. The operating temperature limits of the pump depend on the impeller compound. The following ranges apply for Viton impellers : 60 degrees F to 180 degrees F (15 degrees C to 82 degrees C). A Viton/FKM impeller is good for hydrocarbons and most solvents. Qty Part Number .
Features :
Product Specs :
Flows up to 10.6 GPM
Pressure up to 43.5 psi
Handles hard or soft solids 0.2 Inch maximum diameter
Tolerates abrasive wear - replacable wearplate
Non pulsating flow, proportional to speed
Handles viscosities up to 4,000 centiPoise
Minimal shear to thixotropic fluids
Easy to service and maintain
Parts and Accessories for Jabsco model 28230-2124
Impeller :
Catalog # 8980-0024B, Impeller, High Pressure - Viton
Price: $ 409.97
Applications
These units are inexpensive, versatile and adaptable for many applications. This pump's gentle pumping action gives excellent suspended solids handling capability, and it can pump very abrasive media. This pump can pump foams, emulsions, gas enriched aqueous materials, and is capable of pumping across a wide range of viscosities. Typical Applications for this pump are pumping Acids and alkalis, compounds, copper sulphate, methyls, alcohols, Industrial chemicals, resins, oils, fatty acids, brine. Detergents, soaps, hydrogen peroxide, Paints, dyes, inks, varnishes, laquers, solvents, Transfer, filling, recirculation and agitation, spillage return, spraying, coating, filtration, Viscous, shearsensitive fluids, small hard and soft solids in suspension.
