Jabsco # 28230-2104 Stainless Steel Flexible Impeller Pump

Jabsco Pump 28230-2104

Jabsco # 28230-2104

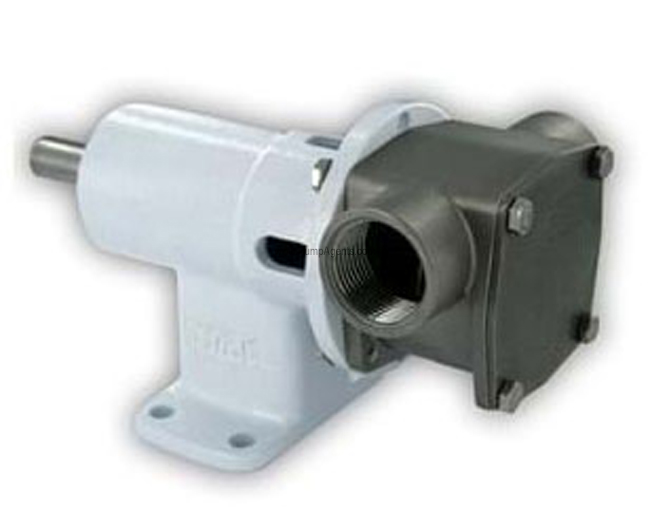

Jabsco catalog # 28230-2104, Stainless Steel Flexible Impeller Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a Standard Pressure Viton Impeller and Viton/Carbon/Ceramic Mechanical Seal. Ports are 3/4 Inch BSP.

Price : Contact Us

Qty :

2 Weeks (0 in stock)

Click Here for PARTS


Product Information :

The Jabsco 28230-2104 is a 316 stainless steel Flexible Impeller pump with a standard pressure Viton Impeller, Viton/Carbon/Ceramic Mechanical Seal, 3/4 Inch BSP Ports, bare shafted pedestal pump end only without a Motor. These pumps can be used where single or variable speed operation and 316 Stainless Steel material is desirable. These pumps are self-priming, with a 10.6 GPM (40 LPM) flow and are debris-tolerant. These pumps are self-priming and will prime at low or high speeds. For a vertical dry suction lift of 10 feet (3m) a minimum of 860 RPM is required. Pump will produce suction lift up to 16.4 feet (5m) when wet. Be sure suction lines are airtight or pump will not self-prime. This unit depends on the liquid pumped for lubrication. Do not run this pump dry for more than 30 seconds as a lack of liquid will damage the impeller. The operating temperature limits of the pump depend on the impeller compound. The following ranges apply for Viton impellers : 60 degrees F to 180 degrees F (15 degrees C to 82 degrees C). A Viton/FKM impeller is good for hydrocarbons and most solvents. Qty Part Number .

Features :

Pump Body:
316 Stainless Steel
Standard Pressure Viton
Shaft Seal:
Viton/Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 3/4 Inch BSP

Product Specs :

Flows up to 10.6 GPM

Pressure up to 43.5 psi

Handles hard or soft solids 0.2 Inch maximum diameter

Tolerates abrasive wear - replacable wearplate

Non pulsating flow, proportional to speed

Handles viscosities up to 4,000 centiPoise

Minimal shear to thixotropic fluids

Easy to service and maintain

Parts and Accessories for Jabsco model 28230-2104

Impeller :

Catalog # 14281-0004B, Impeller, Standard Pressure - Viton

Price: $ 126.17

Qty :

Can Ship : Same Day (26 in stock)


These units are inexpensive, versatile and adaptable for many applications. This pump's gentle pumping action gives excellent suspended solids handling capability, and it can pump very abrasive media. This pump can pump foams, emulsions, gas enriched aqueous materials, and is capable of pumping across a wide range of viscosities. Typical Applications for this pump are pumping Acids and alkalis, compounds, copper sulphate, methyls, alcohols, Industrial chemicals, resins, oils, fatty acids, brine. Detergents, soaps, hydrogen peroxide, Paints, dyes, inks, varnishes, laquers, solvents, Transfer, filling, recirculation and agitation, spillage return, spraying, coating, filtration, Viscous, shearsensitive fluids, small hard and soft solids in suspension.
