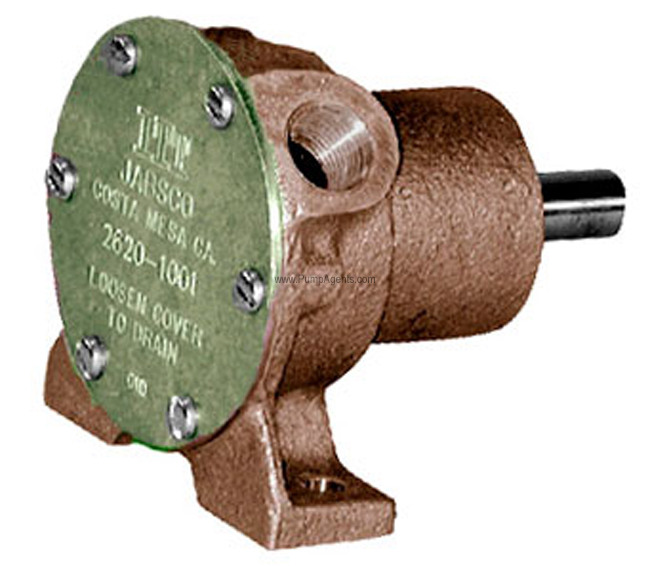

Jabsco # 2620-1101 Bronze Pedestal Pump

Jabsco Pump 2620-1101

Jabsco # 2620-1101

Jabsco catalog # 2620-1101, Bronze Pedestal Pump, bare shafted pedestal pump end only without a Motor. Bronze Construction, with a Neoprene Impeller and Nitrile Lip Type Seal. Ports are 3/8 Inch NPT Internal.

Price : $ 332.76

Qty :

Same Day (36 in stock)

Click Here for PARTS



Product Information :

The Jabsco 2620-1101 is a bronze Flexible Impeller pump with a Neoprene Impeller, Nitrile Lip Type seal, 3/8 Inch NPT Internal Ports, bare shafted pedestal pump end only without a Motor. The Neoprene impeller in this pump can be used for water and general-purpose pumping. Temperature limits for Neoprene impellers are 45 degrees F to 180 degrees F ( 7 degrees C to 82 degrees C). This pump has a nominal flow rate of 20 Litres/min (4.4 gallons/min) at 1500rpm, and is self-priming from dry up to 1.5m (4.9 feet) and primes at low or high speeds. For vertical lift of 10 feet (3.0mm), a minimum of 800 RPM is required. Pump will produce suction lift of up to 22 feet (6.7m) when wetted. Be sure suction lines are airtight or pump will not self-prime. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components. Pump may be mounted in any position. Intake and discharge ports are determined by the direction of shaft rotation. Before installing, turn the pump shaft in the direction of the operating rotation.

To avoid pump damage, do not use petroleum based anti-freeze compounds or rust inhibitors.

Features :

Pump Body:
Bronze
Impeller:
Neoprene
Shaft Seal:
Nitrile Lip Type
Port Size:
Ports are 3/8 Inch NPT Internal

Product Specs :

5.8 GPM .

Lip seal.

Two single row ball bearings.

Self-priming up to 10' vertical lift.

Constructed from marine quality bronze and stainless steel

Easy to service and maintain

Will tolerate abrasive wear

Handles hard and soft solids without clogging

Can pump in either direction

Will not airlock


Parts and Accessories for Jabsco model 2620-1101


Major Overhaul Kit / Rebuild Kit :

Catalog # 90020-0001, Service Kit, with Neoprene Impeller, Seal, and O-ring

Price: $ 69.17

Qty :

Can Ship : Same Day (2 in stock)


Impeller :

Catalog # 18673-0001, Impeller, Neoprene

Price: $ 48.10

Qty :

Can Ship : Same Day (53 in stock)


Shaft Seal :

Catalog # 92700-0050, Lip Seal

Price: $ 18.05

Qty :

Can Ship : Same Day (45 in stock)

Applications

These flexible impeller pumps are selfpriming and therefore, are ideal for engine cooling, washdown, circulation and many general purpose onboard or dockside applications. The bronze bodies and stainless steel shafts are well suited for marine environments. They can operate in either rotational direction.

Marine applications for this pump include Engine Cooling, Pumping bilges, Washdowns, Circulating water in bait tanks, Utility dock side pump.

Industrial applications for this pump include Circulating and transferring, Velocitymixing, Pumping machine tool coolants, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Ink, Dyes, Alcohol, Various acids, Tanning liquors, Glycerine, Brine, etc.

Do not pump light fraction petroleum derivatives, solvents, thinners, highly concentrated or organic acids. Damage to pump may result.
