Jabsco # 23870-1300 Diesel Refuelling Pump

Jabsco Pump 23870-1300

Jabsco # 23870-1300

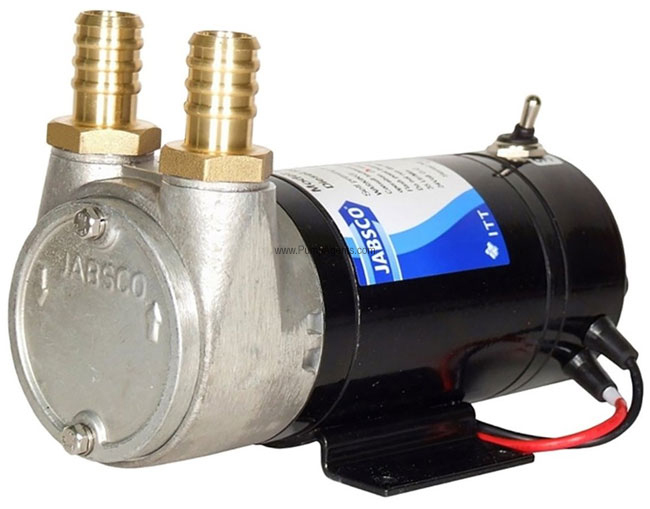

Jabsco catalog # 23870-1300, Diesel Refuelling Pump and Motor unit. Aluminium Construction. Pump is Close Coupled to a 24 Volt DC Motor. Ports are 3/4 Inch hose adaptors.

Price : $ 296.59

Qty :

Same Day (16 in stock)

Click Here for PARTS


Product Information :

The Jabsco 23870-1300 is a aluminium sliding vane diesel transfer pump with a Nitrile Lip Seal, 3/4 Inch hose adaptors Ports, coupled to a 24 Volt DC Motor. Not continuous duty rated. Duty is 25 mins. Designed for refuelling small sizes diesel powered vehicles [typical tank sizes up to 200 litres (50 U.S. gallons)] from drums. Suitable for mounting to the following equipment: Excavators, Cranes, Road rollers (compactors), Pavers, Agricultural machines, Generators, Helicopters. Suitable for diesel fuel, Kerosene, Paraffin, Hydraulic oils, Oils up to 150 centi Stokes (750 Saybolt Universal) viscosity.

Features :

Pump Body:
Shaft Seal:
Nitrile Lip Seal
Port Size:
Ports are 3/4 Inch hose adaptors

Product Specs :

Faster refuelling - 35 litres/minute .

High head capability - 6 metres .

Self priming up to 2.8 metres .

Vibration tested.

IP55 protected motor.

Full range of installation accessories.

Parts and Accessories for Jabsco model 23870-1300


Flow rate 35 Litres/min 9.5 USgallons/min. Selfpriming from dry up to 2.4m 7.8ft. Temperature Range 30 degrees C to 40 degrees C 22 degrees F to 104 degrees F.
