Jabsco # 18370-0000 Pedestal Pump

Jabsco Pump 18370-0000

Jabsco # 18370-0000

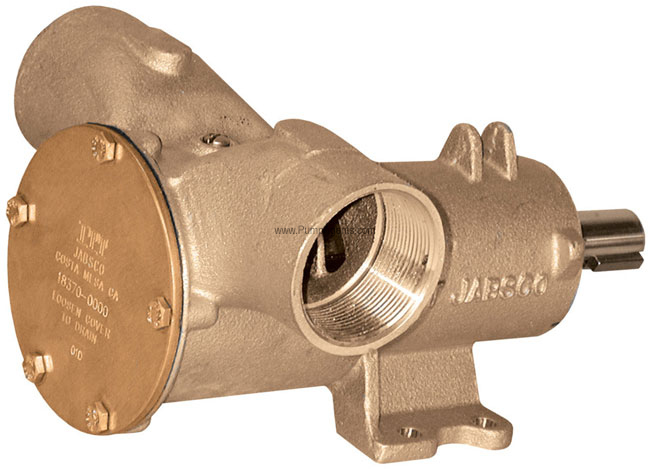

Jabsco catalog # 18370-0000, Bronze Pedestal Flexible Impeller Pedestal Pump, bare shafted pedestal pump end only without a Motor. Bronze Construction, with a Neoprene Impeller and Carbon/Ceramic Mechanical Seal. Ports are 2 Inch NPT Internal Ports.

Price : $ 1445.55

Qty :

Same Day (10 in stock)

Click Here for PARTS



Product Information :

The Jabsco 18370-0000 is a bronze Flexible Impeller pump with a Neoprene Impeller, Carbon/Ceramic Mechanical Seal, 2 Inch NPT Internal Ports, bare shafted pedestal pump end only without a Motor. This pump has a nominal flow rate of 60 GPM (270 LPM) at 1500 RPM, and is self-priming from dry up to 7.8 feet (2.4m) and primes at low or high speeds. For vertical lift of 10 feet (3.0mm), a minimum of 800 RPM is required. Pump will produce suction lift of up to 22 feet (6.7m) when wetted. Be sure suction lines are airtight or pump will not self-prime. The Neoprene impeller in this pump is good for water and general-purpose pumping. Temperature limits for Neoprene impellers are 45 degrees F to 180 degrees F ( 7 degrees C to 82 degrees C). This flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pump's intake and discharge ports. Pump is normally assembled at factory for clockwise rotation (looking at end cover). This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components.

Features :

Pump Body:
Bronze
Impeller:
Neoprene
Shaft Seal:
Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 2 Inch NPT Internal Ports

Product Specs :

Up to 83 GPM at 1750 RPM.

Mechanical face seal.

Neoprene or nitrile impeller.

Two single row ball bearings.

Self-priming up to 10 feet vertical lift.

Constructed from marine quality bronze and stainless steel for ruggedness and reliability.

Easy to service and maintain.

Handles hard and soft solids without clogging.

Can pump in either direction.

Will not airlock.


Parts and Accessories for Jabsco model 18370-0000


Major Overhaul Kit / Rebuild Kit :

Catalog # 90254-0001, Service Kit, with Neoprene Impeller, Seal and O-Ring

Price: $ 107.23

Qty :

Can Ship : Same Day (2 in stock)


Impeller :

Catalog # 17936-0001, Impeller, Neoprene

Price: $ 113.82

Qty :

Can Ship : Same Day (227 in stock)


Shaft Seal :

Catalog # 6408-0000, Mechanical Seal

Price: $ 70.65

Qty :

Can Ship : Same Day (104 in stock)

Applications

These units are inexpensive, versatile and adaptable for many applications. This pump's gentle pumping action gives excellent suspended solids handling capability, and it can pump very abrasive media. This pump can pump foams, emulsions, gas enriched aqueous materials, and is capable of pumping across a wide range of viscosities. Typical Applications for this pump are Engine cooling, Pumping bilges, Washdowns, Circulating water in bait tanks, Utility dock side pump. Circulating and transferring, Velocitymixing, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Inks, Dyes, Alcohol, Tanning Liquors, Glycerine, Brine, etc. Pumping water for stock, Pumping water from shallow wells and cisterns.
