Jabsco # 18330-0040 Electro-Magnetic Clutch Pump 12 VDC

Jabsco Pump 18330-0040

Jabsco # 18330-0040

Jabsco catalog # 18330-0040, Electro-Magnetic Clutch Pump. Bronze Construction, with a Nitrile Impeller and Carbon/Ceramic Mechanical Seal. Ports are 2 Inch NPT.

Price : $ 1641.60

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

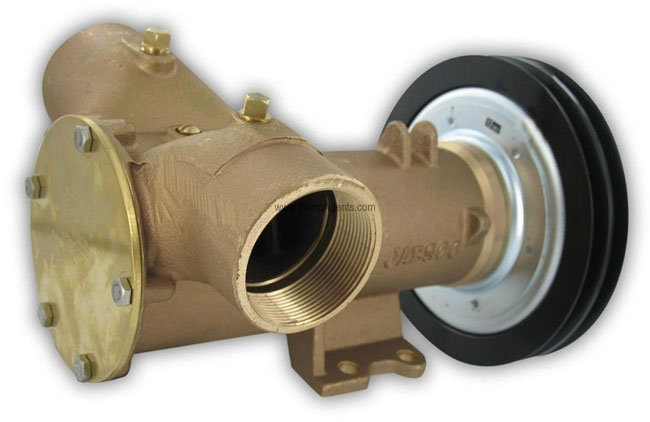

The Jabsco 18330-0040 is a bronze Flexible Impeller pump with an electromagnetic clutch, Nitrile Impeller, Carbon/Ceramic Mechanical Seal, 2 Inch NPT Ports, 12 Volt DC Clutch and a 1-B Belt Pulley. This pump has a 12 Volt DC electromagnetic clutch with a 1B Pulley and Sealed Ball Bearings. Electromagnetic clutches can be operated remotely via float or Hydro Air switches, while fitting a vacuum switch eliminates all risk of dry running damage. However, electromagnetic clutches will only engage as long as electrical power remains available. Pump will self-prime at low or high speeds. Make sure that all connections are airtight. These 12 Volt models are equipped with mechanical clutch engagement screws in case of electrical failure. To mechanically engage clutch, loosen locking nuts, tighten allen head screws and retighten locking nuts. Reverse procedure to disengage clutch. If the mechanical engagement feature is not desired, the screws may be removed. Do not run pump dry for more than 30 seconds as a lack of water flow may damage impeller. Pump may be mounted in any position. Intake and discharge ports are determined by the direction of shaft rotation. Before installing, energize clutch and turn pump shaft in direction of shaft rotation. Drive pump with one B size belt. Avoid dry-running by using Vacuum Switch Model 4732-0000 for automatic shutoff. This pump has a Maximum flow rate of 78.5 GPM (314 LPM) and is self-priming from with up to 15 feet (4.5m) vertical lift.

Features :

Pump Body:
Bronze
Impeller:
Nitrile
Shaft Seal:
Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 2 Inch NPT

Product Specs :

78.5 GPM at 10 feet total head at 1750 rpm.

Mechanical face type shaft seal.

Nitrile impeller.

Two single-row shaft ball bearings.

Handles water-like and medium viscosity liquids.

Excellent self-priming even from dry start-up .

Unaffected by small solid contaminants.

Quick and easy servicing by unskilled people.

Compact, versatile and ready to use.


Parts and Accessories for Jabsco model 18330-0040


Impeller :

Catalog # 6760-0003, Impeller, Nitrile

Price: $ 206.06

Qty :

Can Ship : Same Day (3 in stock)


Shaft Seal :

Catalog # 6408-0000, Mechanical Seal

Price: $ 70.65

Qty :

Can Ship : Same Day (114 in stock)


Other Parts :

Catalog # 4732-0000, Vacuum Switch. Pump is Close Coupled to a Motor.

Price: $ 158.14

Qty :

Can Ship : Same Day (2 in stock)


Catalog # 4732-0000, Vacuum Switch. Pump is Close Coupled to a Motor.

Price: $ 158.14

Qty :

Can Ship : Same Day (2 in stock)

Applications

This Jabsco flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps. Typical Applications for this pump are Engine cooling, Pumping bilges, Washdowns, Circulating water in bait tanks, Utility dockside pump. Circulating and transferring, Velocitymixing, Return spill, Sump drainage, Chemicals, Pharmaceuticals, Soap, Liquors, Ink, Dyes, Alcohol, Tanning Liquors, Glycerine, Brine, etc. Pumping water for stock, Pumping water from shallow wells and cisterns. Under the hood mounting on service trucks for dewatering and draining meter boxes, manholes, excavations, and truck installation under hood for emergency pumping.
