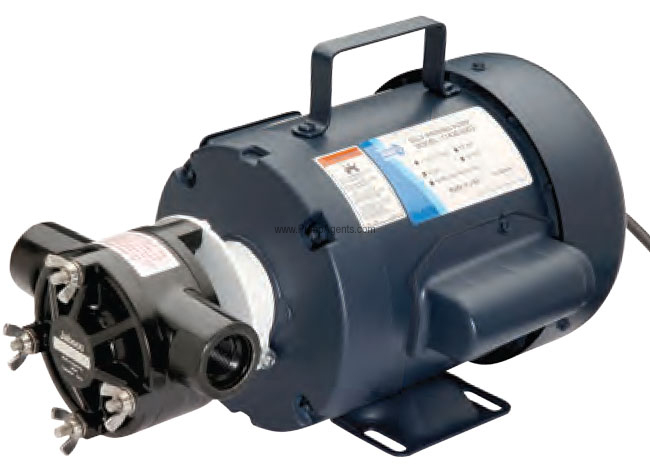

Jabsco # 17430-0003 Epoxy Utility Pump 1/2 HP

Jabsco Pump 17430-0003

Jabsco # 17430-0003

Jabsco catalog # 17430-0003, Epoxy Utility Pump and Motor unit. Glass-Filled Epoxy Construction, with a Nitrile Impeller and Nitrile/Carbon/Ceramic Mechanical Seal. Pump is Close Coupled to a 1/2 Horsepower, 1725 RPM, 115 Volts AC, Single Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Comes with a 8 Foot cord Three-pronged Grounded Plug. Ports are 1/2 Inch NPT Internal.

Price : $ 2049.14

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 17430-0003 is a glass-filled epoxy Flexible Impeller pump with a Nitrile Impeller, Nitrile/Carbon/Ceramic Mechanical Seal, 1/2 Inch NPT Internal Ports, coupled to a 1/2 Horsepower, 1725 RPM, 115 Volts AC, 1 Phase, TEFC, 60 HZ Motor, with a 8 Foot cord Three-pronged Grounded Plug. These pumps can be used where corrosion-resistant phenolic or glass-filled epoxy material, self-priming and debris tolerance are desired. These pumps have an open flow of 11 GPM (42 LPM) flow, are self-priming and will prime at low or high speeds. This pump has a vertical dry suction lift of 6 feet with the Nitrile impeller. Pump will produce suction lift up to 20 feet when wetted. Be sure suction lines are airtight or pump will not self-prime. The Nitrile impeller in this pump is good for oil-based products. Temperature limits for Nitrile impeller are 50 degrees to 180 degrees F (10 degrees to 82 degrees C). Pump may be mounted in any position. Inlet port is on the right and discharge port on the left when facing pump. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components.

Features :

Pump Body:
Glass-Filled Epoxy
Impeller:
Nitrile
Shaft Seal:
Nitrile/Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 1/2 Inch NPT Internal
Motor Specs :
1/2 Horsepower, 1725 RPM RPM, 115 Volts AC, Single Phase, TEFC (Totally Enclosed Fan Cooled).

Product Specs :

Open Flow of 11 GPM .

These pumps can be found in use pumping acids and alkalis.

A high resistance thermosetting plastic pump body.

Servicing and clean out is a simple operation.

Pulsation Free Flow: Delivers a smooth even flow

Hard Solid Handling: Passes hard solids or abrasives with minimal wear or damage

Non-Shear Action: Will handle delicate fluids


Parts and Accessories for Jabsco model 17430-0003


Shaft Seal :

Catalog # 96080-0280, Seal Assembly, with Buna Grommet, Ceramic Seal and Carbon Face

Price: $ 63.41

Qty :

Can Ship : Same Day (4 in stock)

Applications

This pump is designed for transfers, circulation, spill returns, filtration and filling line use. Easily handles pure solutions, foaming liquids, emulsions, suspended solids, gels and metallic contamination, it is widely used for pumping photo chemicals, plating compounds, lab solutions, pharmaceuticals, cosmetics, weak acids, alkalize, liquid fertilizers, insecticides, dyes, detergents, waxes and many more. There is no pump metal part in contact with the fluid.
