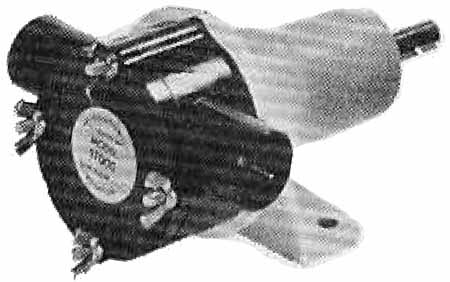

Jabsco # 17000-0001 Epoxy Plastic Pedestal Pump

Jabsco Pump 17000-0001

Jabsco # 17000-0001

Jabsco catalog # 17000-0001, Epoxy Plastic Pedestal Pump, bare shafted pedestal pump end only without a Motor. Glass-Filled Epoxy Construction, with a Neoprene Impeller and Nitrile/Carbon/Ceramic Mechanical Seal. Ports are 3/8 Inch NPT Internal.

Price : $ 565.75

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 17000-0001 is a glass-filled epoxy Flexible Impeller pump with a Neoprene Impeller, Nitrile/Carbon/Ceramic Mechanical Seal, 3/8 Inch NPT Internal Ports, bare shafted pedestal pump end only without a Motor. These pumps can be used where Glass-filled Epoxy construction, self-priming, 5.5 GPM (20.8 LPM) flow, debris-tolerance, and pedestal mounting is desired. These flexible impeller pumps are self-priming and pump instantly with dry suction, lifts up to 10 feet (3m) and up to 22 feet (6.7m) when wetted. Permits cleaner, safer installations. No foot valve required. Be sure suction lines are airtight or pump will not self-prime. The Glass-filled Epoxy bodies and stainless steel shafts are well suited for industrial and chemical applications. These pumps have one moving part a tough, long-lived, wear-resistant flexible impeller, lubricated by the liquid being pumped. No metal-to-metal pumping action no gears to jam, clog or become noisy. The operating temperature limits of the pump depend on the impeller compound. The following range applies for Neoprene impellers : 45 degrees F to 180 degrees F (7 degrees C to 82 degrees C). A Neoprene impeller is good for water and general purpose pumping. This unit depends on the liquid pumped for lubrication. Do not run this pump dry for more than 30 seconds as a lack of liquid will damage the impeller.

Features :

Pump Body:
Glass-Filled Epoxy
Impeller:
Neoprene
Shaft Seal:
Nitrile/Carbon/Ceramic Mechanical Seal
Port Size:
Ports are 3/8 Inch NPT Internal

Product Specs :

Glass-filled Epoxy pump head.

5.5 GPM output at 10 feet total head.

Self-Priming from 810 feet dry, from 1822 feet when wetted.

Servicing and clean out is a simple operation.

Pulsation Free Flow: Delivers a smooth even flow.

Non-Shear Action: Will handle delicate fluids.

Hard Solid Handling: Passes hard solids or abrasives with minimal wear, clogging or damage.


Parts and Accessories for Jabsco model 17000-0001


Major Overhaul Kit / Rebuild Kit :

Catalog # 90176-0001, Service Kit, with Neoprene Impeller, Seal and O-Ring

Price: $ 401.54

Qty :

Can Ship : 2 Weeks (0 in stock)


Impeller :

Catalog # 14874-0001, Impeller, Neoprene

Price: $ 82.28

Qty :

Can Ship : Same Day (6 in stock)


Shaft Seal :

Catalog # 96080-0280, Seal Assembly, with Buna Grommet, Ceramic Seal and Carbon Face

Price: $ 63.41

Qty :

Can Ship : Same Day (4 in stock)

Applications

This pump is designed for transfers, circulation, spill returns, filtration, and filling line use. Easily handles pure solutions, foaming liquids, emulsions, suspended solids, gels and ferments. Because the plastic pump is resistant to corrosion and metallic contamination, it is widely used for pumping photo chemicals, plating compounds, lab solutions, pharmaceuticals, cosmetics, weak acids, alkalies, liquid fertilizers. These pumps are versatile, multipurpose units that fill in where more specialised and expensive units are not practical for the job in hand. This Jabsco flexible impeller pump combines the priming feature of positive displacement type pumps with the general transfer ability of centrifugals. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps.
