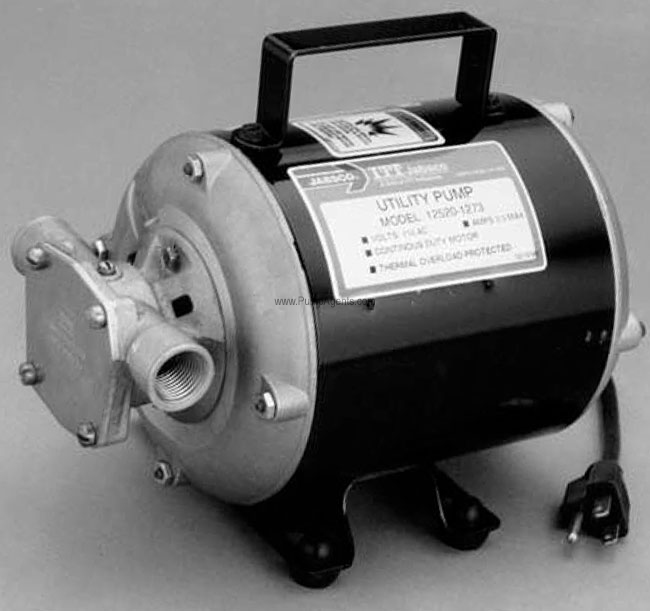

Jabsco # 12520-0271 Bronze Self Priming Pump 1/4 HP

Jabsco Pump 12520-0271

Jabsco # 12520-0271

Jabsco catalog # 12520-0271, Bronze Self Priming Pump and Motor unit. Bronze Construction, with a Neoprene Impeller and Buna/N Lip Type Seal. Pump is Close Coupled to a 1/4 Horsepower, 1725 RPM, 115 Volts Motor. Comes with a 8 foot Cord 3 Prong Plug. Ports are 3/8 Inch NPT Internal and 3/4 Inch GHT External.

Price : $ 706.77

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 12520-0271 is a bronze Flexible Impeller pump with a Neoprene Impeller, Buna/N Lip Type seal, coupled to a 1/4 Horsepower, 1725 RPM, 115 Volts, 60 HZ Motor, with a 8 foot Cord 3 Prong Plug. This pump has a nominal Flow rate of 6 US gallons/min (22.8 Litres/min). This pump has a vertical dry suction lift of 6 feet with the Neoprene impeller. Pump will produce suction lift up to 20 feet when wetted. Be sure suction lines are airtight or pump will not self-prime. The Neoprene impeller in this pump is good for water and general-purpose pumping. Temperature limits for Neoprene impeller are 45 degrees F to 180 degrees F ( 7 degrees C to 82 degrees C). The Jabsco 12520 Series Pumps are very versatile, moderate flow rate, portable self-priming utility pumps suitable for continuous duty applications. Use these pumps for general transfer pumping where self-priming, 6 GPM (22.8 LPM) flow, debris tolerance and portable 115 Volt AC operation is desired. Long-lasting AC induction motor has no brushes to wear out. For continuous operation at 75 degrees F (24 degrees C), do not exceed 15 psi (1 bar) outlet pressure or 38 feet (11.6m) of lift. Pump may be mounted in any position. Inlet port is on the right and discharge port on the left when facing pump. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components.

Do not pump gasoline, solvents, thinners or other flammable liquids. Do not use where flammable vapors are present.

Features :

Pump Body:
Bronze
Impeller:
Neoprene
Shaft Seal:
Buna/N Lip Type
Port Size:
Ports are 3/8 Inch NPT Internal and 3/4 Inch GHT External
Motor Specs :
1/4 Horsepower, 1725 RPM RPM, 115 Volts.

Product Specs :

Bronze pump head.

5.8 GPM output at 10 feet total head.

Motor with thermal overload protection.

8 foot power cord with grounded plug.

Convenient carrying handle.

Easy to service and maintain.

Non pulsating flow.

Handles hard and soft solids without clogging.

Will tolerate abrasive wear


Parts and Accessories for Jabsco model 12520-0271


Impeller :

Catalog # 7273-0001-P, Impeller, Neoprene

Price: $ 37.10

Qty :

Can Ship : Same Day (26 in stock)

Applications

These Jabsco Flexible impeller pumps are versatile, multipurpose units that fill in where more specialised and expensive units are not practical for the job in hand. These Jabsco utility pumps are bronze, so retain that high quality found in the marine range. They are widely found in use at metalworking factories, agricultural facilities, waste water treatment works and building facility management companies. These units are portable with a carrying handle and can be used anywhere across site from washdown to pump out applications. Typical Applications for this pump include Circulating and transferring, velocitymixing, pumping machine tool coolants, return spill, sump drainage, pharmaceuticals, soap, liquors, ink, dyes, alcohol, glycerine, brine and pumping water for cooling heliarc welding equipment. Pumping water for stock, pumping water from shallow wells and cisterns Washdowns, utility dock side pump. Pumping out flooded basements, cesspools, sumps, water heaters and water closets, drains and sinks, draining fishponds and small pools. Dewatering and draining meter boxes and excavations, dust control and sampling.
