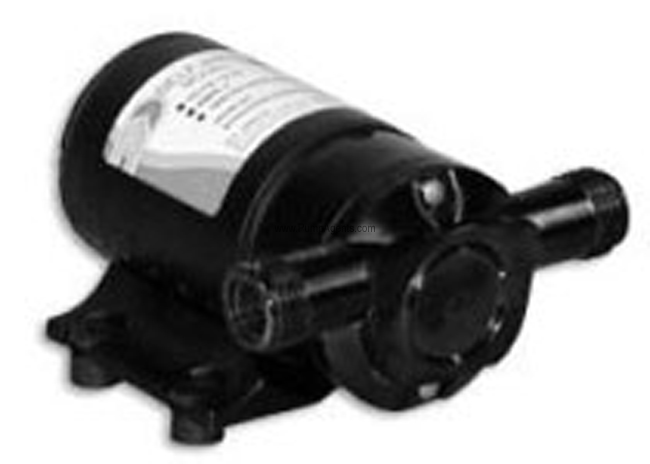

Jabsco # 12460-0011 Self-Priming Flexible Impeller Pump

Jabsco Pump 12460-0011

Jabsco # 12460-0011

Jabsco catalog # 12460-0011, Self-Priming Flexible Impeller Pump and Motor unit. Phenolic-Type Plastic Construction, with a Neoprene Impeller and Lip Type Seal. Pump is Close Coupled to a 12 Volt DC, 4 amps Motor. Ports are 3/4 Inch Garden hose external and 3/8 Inch Pipe internal.

Price : $ 523.08

Qty :

Same Day (2 in stock)

Click Here for PARTS



Product Information :

The Jabsco 12460-0011 is a phenolic-type plastic Flexible Impeller pump with a Neoprene Impeller, Lip Type seal, coupled to a 12 Volt DC, 4 amps Motor. This pump is for intermittent duty only, and has a Reversible permanent magnet, fully enclosed Motor with a stainless steel shaft. The motor on this pump meets USCG Electrical Standards (Title 33, Chapter 1, Part 183; Subpart 1) for IGNITION PROTECTION on gasoline powered vessels. This pump is self-priming and with a wet impeller, pump will produce a suction lift of about 4 feet (1.2m) and a lift to 15 feet (5m) when primed. This flexible impeller pump must not be run dry, as the pumped liquid is the lubricant for the impeller. Observe the outlet and shut off pump as soon as liquid stops flowing. An automatic level switch is convenient to control the pump. The pump cannot run against a closed outlet such as encountered when using a garden hose type shut-off nozzle. Temperature of pumped liquid may be in the range of 45 degrees F - 160 degrees F (10 degrees C - 70 degrees C). Pressure for normal operation should not exceed 30 feet of head (13 psi). The pump must be mounted in a dry location the motor is not waterproof and must not be submerged. Selection of a cool location will generally extend pump motor life. The unit can be mounted in any desired position. The pump head may be rotated 180 degrees to change direction of flow in preferred rotation (see wiring diagram). It is best to mount so that water dripping from loose port connection will not wet the motor.

Features :

Pump Body:
Phenolic-Type Plastic
Impeller:
Neoprene
Shaft Seal:
Lip Type
Port Size:
Ports are 3/4 Inch Garden hose external and 3/8 Inch Pipe internal

Product Specs :

Intermittent duty cycle.

Easy to service and maintain.

Will tolerate abrasive wear

Handles hard and soft solids without clogging.

Non pulsating flow


Parts and Accessories for Jabsco model 12460-0011


Impeller :

Catalog # 14750-0001, Impeller, Neoprene

Price: $ 40.09

Qty :

Can Ship : Same Day (5 in stock)


Shaft Seal :

Catalog # 1040-0000, Buna Lip Seal

Price: $ 12.03

Qty :

Can Ship : Same Day (32 in stock)

Applications

Use for bilge pumping, live well circulation, wash down and general pumping requirements. When bilge water contains significant amounts of oil, use impeller No. 147500003.
