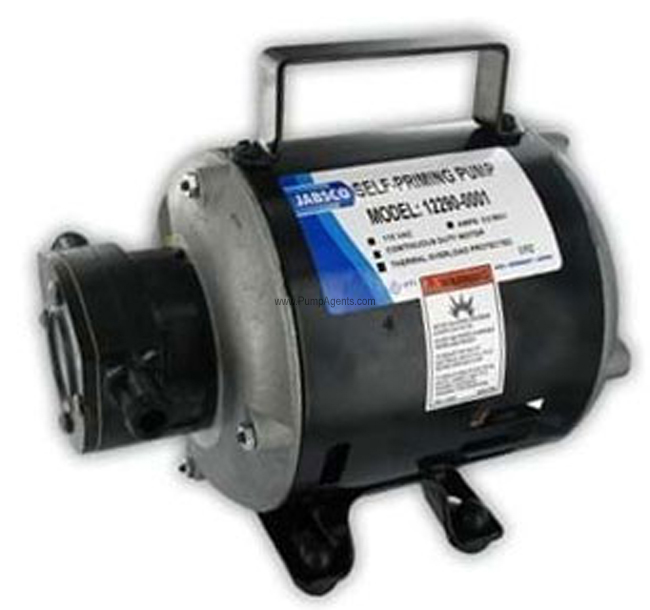

Jabsco catalog # 12290-0273, Self-Priming Pump and Motor unit. Phenolic Plastic Construction, with a Nitrile Impeller. Pump is Close Coupled to a 1/6 Horsepower, 1750 RPM, 115 Volts Motor. Ports are 5/8 Inch OD for Hose Connections.
Price : $ 1055.07
The Jabsco 12290-0273 is a phenolic plastic Flexible Impeller pump with a Nitrile Impeller, 5/8 Inch OD for Hose Connections Ports, coupled to a 1/6 Horsepower, 1750 RPM, 115 Volts, 60 HZ Motor. SELF-PRIMING Vertical dry suction lift of up to 5 feet (1.5 m) for nitrile impellers. Pump will produce suction lift up to 15 feet (4.5 m) when wetted. TEMPERATURES Impellers are suitable for service as follows: Nitrile impeller 50 degrees to 180 degrees F (10 degrees to 82.2 degrees C). Flow rate: up to 5.9 USgpm, maximum head 30ft (13psi). Use where corrosion resistant phenolic or glass-filled expoxy material, self-priming and debris tolerance is desired. Nitrile impeller is ideal for oil based products.
Unit depends on liquid pumped for lubrication. Do not run dry for more than 30 seconds. Lack of liquid will damage the impeller and other pump components. When corrosive fluids are handled, pump life will be prolonged if pump is flushed with water after each use or after each work day.
Easy to service and maintain.
Handles hard and soft solids without clogging.
Non pulsating flow
Major Overhaul Kit / Rebuild Kit :
Catalog # 90126-0013, Service Kit with Nitrile Impeller, Gasket and seal
Price: $ 51.70
Catalog # 7273-0003, Impeller, Nitrile
Price: $ 37.10
Shaft Seal :
Catalog # 1040-0001, Viton Lip Seal
Price: $ 25.04
Casing frozen or cracked ? New Pump Casing :
Catalog # 12554-0000, Body, Plastic
Price: $ 106.98
Designed as a low cost pump for transfers, circulation, spill returns, filtration and filling line use. Easily handles pure solutions, foaming liquids, emulsions, suspended solids and ferments with viscosities less than 500 SSU. Because the plastic pump is resistant to corrosion and metallic contamination, it is widely used for pumping photo chemicals, plating compounds, lab solutions, pharmaceuticals, cosmetics, weak acids, alkalies, liquid fertilizers, insecticides, dyes, detergents, waxes and many more.
