Goulds Pump 6BF2G1B3 Centrifugal Pump and motor

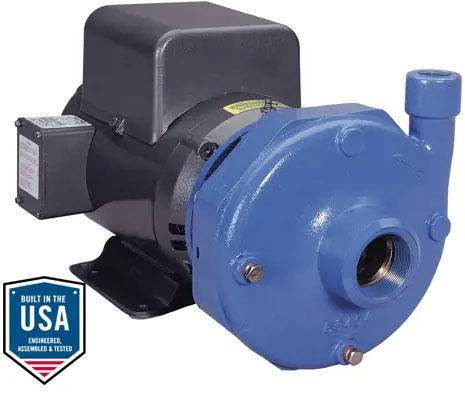

The Goulds 6BF2G1B3 is a 3656S Series Centrifugal Pump and Motor, with Cast Iron Bronze fitted construction (Cast Iron Casing - Bronze Impeller), a 6.38 Inch Silicon-Brass Impeller, Viton Mechanical Seal, 4 Inch Flanged Inlet x 3 Inch Flanged Discharge (ports require 150 lb flange connections), and is close coupled to a 2 Horsepower, 1750 RPM, 60 HZ, 115/230 Volt, 1 Phase, ODP (Open Drip Proof) Motor. The Goulds 3656 Series pumps are designed for a variety of water supply, recirculation, and cooling applications, with an enclosed silicon-brass impeller, dynamic balancing, and replaceable bronze wear rings to reduce losses and extend pump life. The close-coupled design mounts the pump directly to the motor, saving space and eliminating coupling alignment and re-alignment after service, and back pull-out construction allows the rotating element to be removed without disturbing the piping or moving the motor for shorter maintenance downtime. Replaceable wearing components, including a stainless steel shaft sleeve and casing and hub wear rings, allow the parts subject to wear to be renewed rather than replacing larger pump components. A rigid cast iron motor adapter provides support, with registered fits maintaining positive pump and motor alignment without shimming. Bearings are located in and are part of the motor. Units may be installed horizontally, inclined or vertically with the motor above the pump. The pump uses a Carbon/Sil-Carbide/Viton Type 21 mechanical seal and Viton O-rings/gaskets rated for liquid temperatures up to 250 degrees F (121 degrees C). Suction and discharge connections are 4 Inch Flanged Inlet x 3 Inch Flanged Discharge (ports require 150 lb flange connections), 125 lb. ANSI flat faced flanges, and rotation is clockwise when viewed from the motor end.
