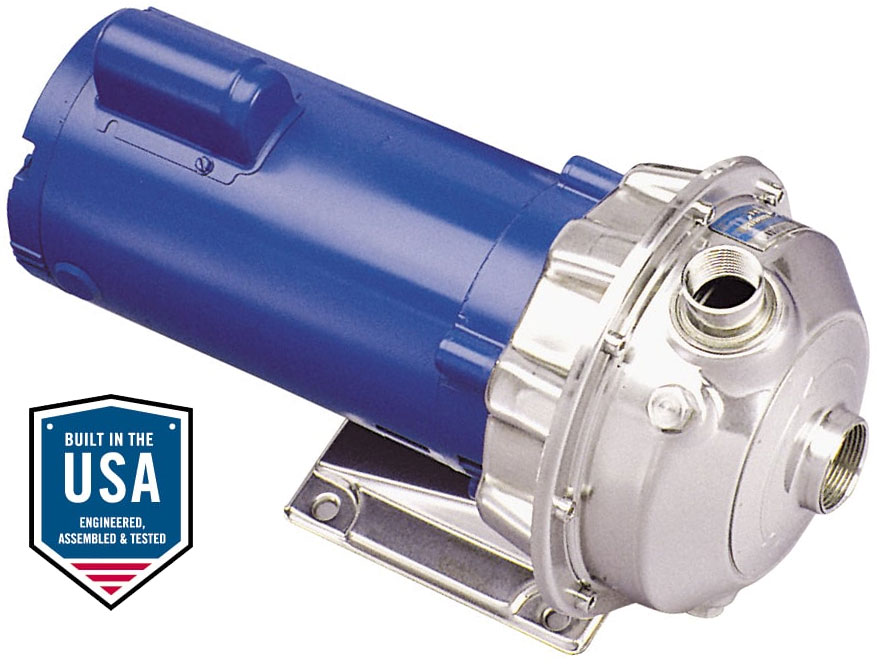

Goulds Pump 1ST2C5E9 Centrifugal Pump and motor

The Goulds 1ST2C5E9 is a Centrifugal Pump and Motor, NPE (1 x 1 1/4 - 6), AISI 316L Stainless Steel construction, with a 4-7/16 Inch 316L Stainless Steel Impeller, Teflon/Carbon/Ceramic Mechanical Seal, 1-1/4 Inch NPT Inlet x 1 Inch NPT Discharge, and is close coupled to a 1/2 Horsepower, 1750 RPM, 60 HZ, 208-230/460 Volt, 3 Phase, TEFC (Totally Enclosed Fan Cooled) Motor. The Goulds NPE series pumps are 316L Stainless Steel close-coupled end suction centrifugal pumps for a broad range of general applications that traditionally required all iron, bronze fitted, all bronze or stainless construction. They have complete AISI 316L Stainless Steel liquid handling components for corrosion resistance and improved strength and durability - casing, impeller, guidevane and seal housing - with a floating O-ring enclosed impeller design that maintains maximum efficiencies. The close-coupled compact, flexible design saves space, can be mounted horizontally or vertically, and simplifies maintenance; the casing and 304 Stainless Steel motor adapter have NPT threaded centerline connections, and easily accessible vent, prime and drain connections with stainless plugs. Standard NEMA 56J frame motors are open drip-proof or totally enclosed fan-cooled enclosure, with a stainless steel shaft, designed for continuous duty under all conditions, in single and three phase. Each unit is built from four components - the pump kit, the impeller, the motor adapter and the motor - so a pump can be assembled to order and serviced by component. This model is fitted with a 5/8 inch Teflon/Carbon/Ceramic mechanical seal with Teflon o-rings. Suction and discharge connections are 1-1/4 Inch NPT Inlet x 1 Inch NPT Discharge.
