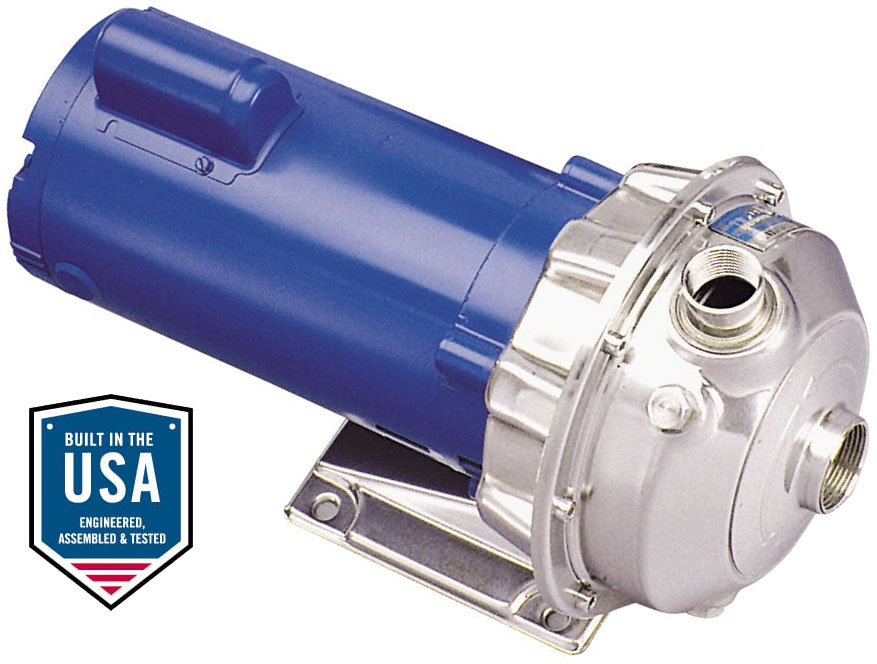

Goulds Pump Model # 1ST2C4F2

Goulds Pump 1ST2C4F2

Goulds # 1ST2C4F2

Goulds catalog # 1ST2C4F2, Stainless Steel Centrifugal Pump, NPE Series (1 x 1-1/4 - 6), close coupled to a 1/2 Horsepower, 1750 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) Motor. Pump has a 4.06 Inch Impeller Diameter, EPR Mechanical Seal. Ports are 1-1/4 Inch NPT Inlet x 1 Inch NPT Discharge.

Price : $ 1157.31

Qty :

Next Day (1 in stock)

Click Here for PARTS



Product Information :

1ST2C4F2 Parts Page Parts Page (click here)

Features :

Pump Body:
316 Stainless Steel
Impeller:
316 Stainless Steel, 4.06 Inch Diameter
Shaft:
Motor Shaft is 404 Stainless Steel
Shaft Seal:
EPR Mechanical Seal
Port Size:
1-1/4 Inch NPT Inlet x 1 Inch NPT Discharge
Motor / Amp Draw:
1/2 Horsepower , 1750 RPM, 60 HZ , 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) Motor

Parts and Accessories for Goulds model 1ST2C4F2

Impeller :

Catalog # 2L59, Impeller (.5 HP) 4.06" Dia.

Price: $ 136.73

Qty :

Can Ship : 5-7 Days (when ordered)

Shaft Seal :

Catalog # 10K18, Hi-Temp Seal Assembly

Price: $ 94.60

Qty :

Can Ship : Same Day (4 in stock)

Casing frozen or cracked ? New Pump Casing :

Catalog # 1L81, Casing

Price: $ 412.50

Qty :

Can Ship : Same Day (2 in stock)

Other Parts :

Catalog # 5K193, O-Ring, Casing - Optional

Price: $ 26.48

Qty :

Can Ship : 5-7 Days (when ordered)

Applications

Specifically designed for a broad range of general applications traditionally requiring various materials such as all iron, bronze fitted, all bronze or stainless construction. &149; Water circulation &149; Booster service &149; Liquid transfer &149; Spray system &149; Chillers &149; Washing/cleaning systems &149; Injection molding cooling &149; Reverse osmosis &149; Air scrubbers &149; Heat exchangers &149; Filtration systems &149; Jockey pumps &149; OEM applications &149; General water services
