Goulds Pump Model # 1ST1E2E6

Goulds Pump 1ST1E2E6

Goulds # 1ST1E2E6

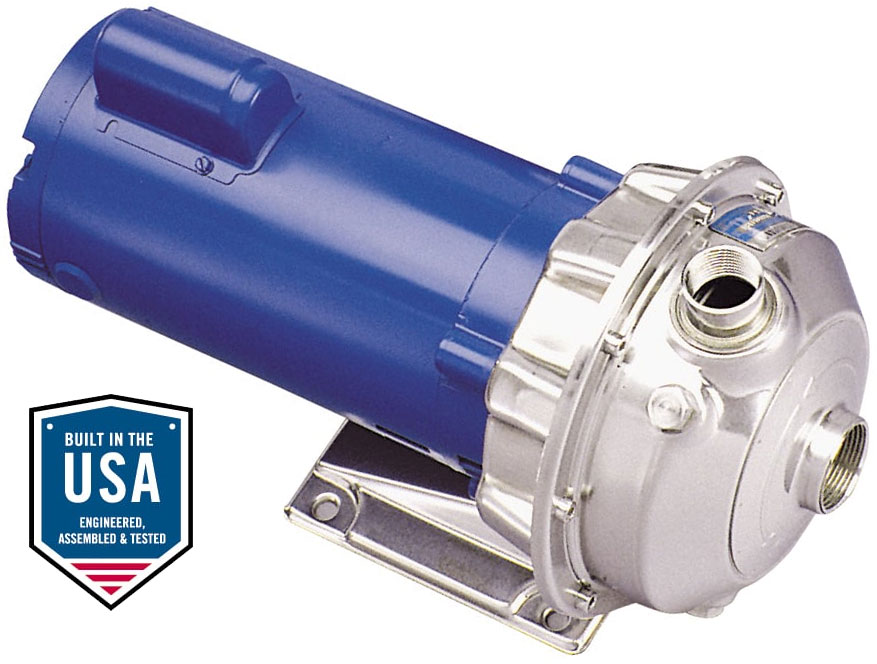

Goulds catalog # 1ST1E2E6, Stainless Steel Centrifugal Pump, NPE Series (1 x 1-1/4 - 6), close coupled to a 1 Horsepower, 3500 RPM, 60 HZ, 230/460 Volt, 3 Phase, ODP (Open Drip Proof) Motor. Pump has a 4.44 Inch Impeller Diameter, Sil-Carbide/Sil-Carbide Viton Mechanical Seal. Ports are 1-1/4 Inch NPT Inlet x 1 Inch NPT Discharge.

Price : $ 1114.05

Qty :

1 Week (when ordered)

Click Here for PARTS



Product Information :

1ST1E2E6 Parts Page Parts Page (click here)

Features :

Pump Body:
316 Stainless Steel
Impeller:
316 Stainless Steel, 4.44 Inch Diameter
Shaft:
Motor Shaft is 404 Stainless Steel
Shaft Seal:
Sil-Carbide/Sil-Carbide Viton Mechanical Seal
Port Size:
1-1/4 Inch NPT Inlet x 1 Inch NPT Discharge
Motor Specs :
1 Horsepower , 3500 RPM, 60 HZ , 230/460 Volt, 3 Phase, ODP (Open Drip Proof) Motor

Parts and Accessories for Goulds model 1ST1E2E6

Impeller :

Catalog # 2L45, Impeller (.5 ODP,.75 TEFC)

Price: $ 225.06

Qty :

Can Ship : 5-7 Days (when ordered)

Shaft Seal :

Catalog # 10K62, Shaft Seal Assembly

Price: $ 187.00

Qty :

Can Ship : 5-7 Days (when ordered)

Casing frozen or cracked ? New Pump Casing :

Catalog # 1L81, Casing

Price: $ 412.50

Qty :

Can Ship : Same Day (2 in stock)

Other Parts :

Catalog # 5K206, O-Ring, Casing - Optional

Price: $ 40.70

Qty :

Can Ship : Same Day (12 in stock)

Applications

Specifically designed for a broad range of general applications traditionally requiring various materials such as all iron, bronze fitted, all bronze or stainless construction. &149; Water circulation &149; Booster service &149; Liquid transfer &149; Spray system &149; Chillers &149; Washing/cleaning systems &149; Injection molding cooling &149; Reverse osmosis &149; Air scrubbers &149; Heat exchangers &149; Filtration systems &149; Jockey pumps &149; OEM applications &149; General water services
