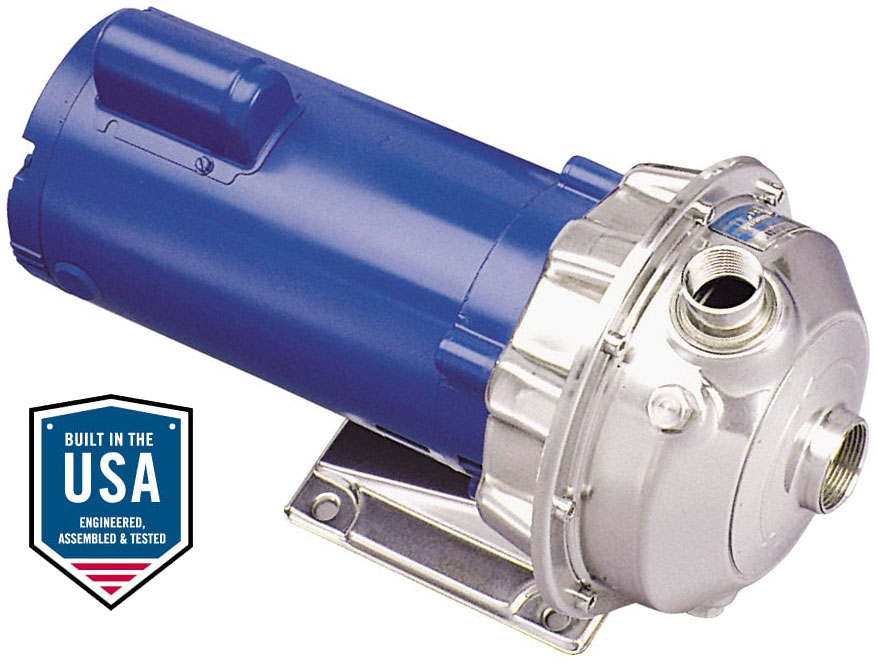

Goulds catalog # 1ST1C1F4, Stainless Steel Centrifugal Pump, NPE Series (1 x 1-1/4 - 6), close coupled to a 1/2 Horsepower, 3500 RPM, 60 HZ, 115/230 Volt, 1 Phase, ODP (Open Drip Proof) Motor. Pump has a 4.06 Inch Impeller Diameter, Standard Viton Mechanical Seal. Ports are 1-1/4 Inch NPT Inlet x 1 Inch NPT Discharge.
Price : $ 837.54
Minor Service Kit :
Catalog # RPKNPE, SEAL REPAIR KIT NPE. Includes: Viton Impeller Seal Ring (#5K269), Viton Casing O-Ring (#5K206), Viton Mechanical Seal (#10K55).
Price: $ 86.13
Catalog # 2L59, Impeller (.5 HP) 4.06" Dia.
Price: $ 136.73
Shaft Seal :
Catalog # 10K55, Shaft Seal Assembly
Price: $ 94.60
Casing frozen or cracked ? New Pump Casing :
Catalog # 1L81, Casing
Price: $ 412.50
Other Parts :
Catalog # 5K206, O-Ring, Casing - Optional
Price: $ 40.70
Specifically designed for a broad range of general applications traditionally requiring various materials such as all iron, bronze fitted, all bronze or stainless construction. &149; Water circulation &149; Booster service &149; Liquid transfer &149; Spray system &149; Chillers &149; Washing/cleaning systems &149; Injection molding cooling &149; Reverse osmosis &149; Air scrubbers &149; Heat exchangers &149; Filtration systems &149; Jockey pumps &149; OEM applications &149; General water services
