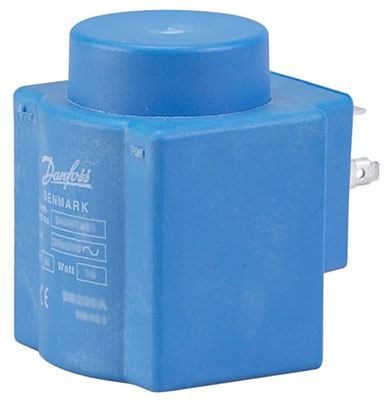

Danfoss part # 018F7907 Solenoid Coil 24VAC 14W IP65UL
Danfoss # 018F7907
Danfoss catalog # 018F7907, Solenoid Coil, with a DIN Spade Electrical connection, 24 Volts AC supply voltage, and IP00 Enclosure rating. Type BY without LED for Hirschmann plug - EXCLUDES plug, UL Recognised.
Price : $ 51.86
Product Information :
The Danfoss part # 018F7907 is a Solenoid Coil, with a DIN Spade Electrical connection, 24 Volts AC supply voltage, and IP00 Enclosure rating. Type BY without LED for Hirschmann plug - EXCLUDES plug, UL Recognised.
| Actuator size [mm] | 13.5 mm |
| Ambient temperature range [C] | 50 C |
| Ambient temperature range [F] | 122 F |
| Approval | UL approval |
| Coil connection | DIN Spade |
| Coil design standard | VDE 0580 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Color | Blue |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Description | Coil BY024CS 24V 50/60Hz |
| EEE category | 5 small equipment (any external dimension |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| Frequency [Hz] | 50/60 Hz |
| Further information | UL approved coil |
| In scope of WEEE | Yes |
