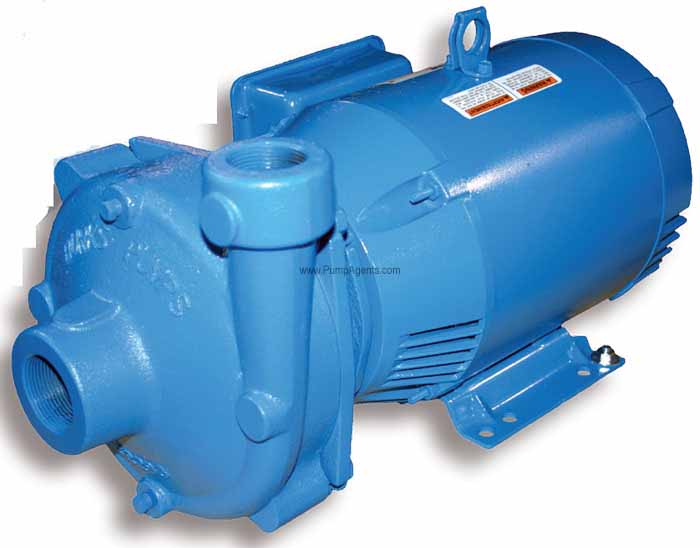

Burks Pump T330GA6-1-1/2 Centrifugal Pump and motor

The Burks T330GA6-1-1/2 is a Centrifugal Pump and Motor, with Bronze Fitted construction, Cast Iron casing and motor adapter, a 4.75 Inch Bronze Impeller, Steel motor shaft with a Bronze shaft sleeve, Buna Mechanical Seal, 2 Inch NPT Inlet x 1-1/2 Inch NPT Discharge, and is close coupled to a 3 Horsepower, 3500 RPM, 60 HZ, 230/460 Volt, 3 Phase, TEFC (Totally Enclosed Fan Cooled) 182JM frame Motor. The Burks GA6 Series pumps are close coupled centrifugal pumps, 1750 or 3500 RPM, 60 HZ, in bronze fitted or all bronze construction. The casing can be turned to put the discharge in any of four positions; back pull-out design means the casing stays in the line, so the pump can be serviced without disturbing the piping. The enclosed bronze impeller is balanced for vibration free operation and precision fit to the shaft with key drive and cap screw lock; a gasketed, keyed bronze shaft sleeve protects the shaft from wear and corrosion in the seal area. Motors are JM type with a NEMA standard mounting flange, extended steel shaft and dual bearings, and must be installed with a magnetic starter for overload protection. Maximum inlet pressure is 100 PSI and casing working pressure 200 PSI; every pump is factory tested to Hydraulic Institute standards. This pump is Bronze Fitted construction, GA6-1-1/2 size, close coupled to a 3 Horsepower, 3500 RPM, 60 HZ, 230/460 Volt, 3 Phase, TEFC (Totally Enclosed Fan Cooled) 182JM frame Motor. It uses a Carbon/Ceramic/Buna mechanical seal with Buna O-rings, rated to 225 degrees F. Suction and discharge connections are 2 Inch NPT Inlet x 1-1/2 Inch NPT Discharge.
