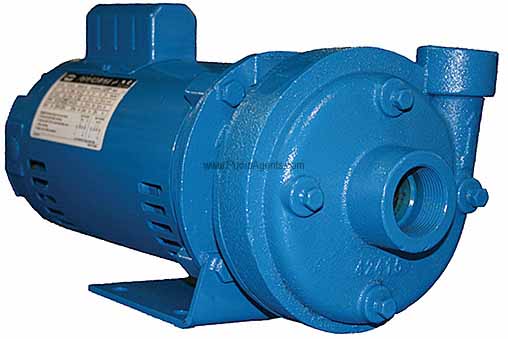

Burks Pump T15GA4-1-1/2 Centrifugal Pump and motor

The Burks T15GA4-1-1/2 is a Centrifugal Pump and Motor, with Bronze Fitted construction, Cast Iron casing and motor adapter, a 3.75 Inch Bronze Impeller, 303 Stainless Steel shaft, Buna Mechanical Seal, 2 Inch NPT Inlet x 1-1/2 Inch NPT Discharge, and is close coupled to a 1-1/2 Horsepower, 3500 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) 56J frame Motor. The Burks GA4 Series pumps are close coupled centrifugal pumps, 3500 RPM, 60 HZ, in bronze fitted construction. The casing is close grain cast iron of 30,000 psi minimum tensile strength and can be turned to put the discharge in any of four positions; back pull-out design means the casing stays in the line, so the pump can be serviced without disturbing the piping. The enclosed bronze impeller is balanced for vibration free operation and threaded onto the one piece stainless steel motor shaft. Motors are 56 frame NEMA standard mounting with ball bearings, rated with jet pump service factors for continuous duty; single phase and totally enclosed motors have built in overload protection, three phase motors must be installed with a magnetic starter. Maximum inlet pressure is 70 PSI and casing working pressure 100 PSI; every pump is factory tested to Hydraulic Institute standards. This pump is Bronze Fitted construction, GA4-1-1/2 size, close coupled to a 1-1/2 Horsepower, 3500 RPM, 60 HZ, 115/230 Volt, 1 Phase, TEFC (Totally Enclosed Fan Cooled) 56J frame Motor. It uses a Carbon/Ceramic/Buna mechanical seal with a Buna casing gasket, rated to 225 degrees F. Suction and discharge connections are 2 Inch NPT Inlet x 1-1/2 Inch NPT Discharge.
