Burks model # 7CT7M - Turbine Pump

Burks Pump 7CT7M

Burks # 7CT7M

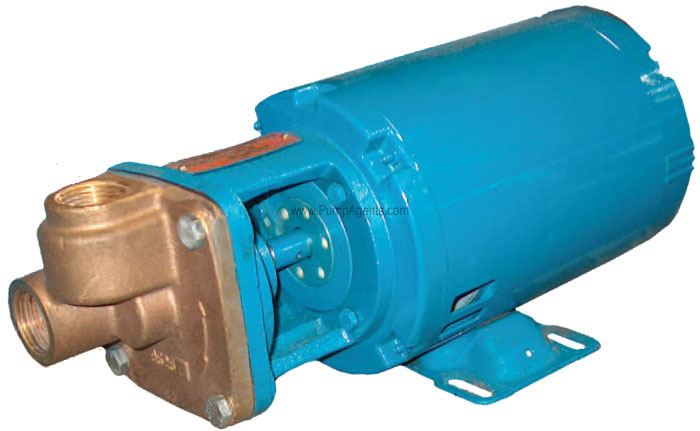

Burks catalog # 7CT7M, Turbine Pump and Motor unit. Bronze Fitted Cast Iron Construction. Close Coupled to a 3/4 Horsepower, 3450 RPM, 115/230 Volts, 1 Phase Motor. Ports are 1 Inches NPT Inlet, 1 Inches NPT Outlet.

Price : $ 1238.06

Qty :

Same Day (3 in stock)

Click Here for PARTS


Product Information :

Parts and Accessories for Burks model 7CT7M

Major Overhaul Kit / Rebuild Kit :

Catalog # 20158-7, Repair Kit for All CT7M Series Pumps. Kit Includes: Impeller, Raceway, Shaft Seal, O-Ring Gasket, Impeller Locknut, and instructions.

Price: $ 669.50

Qty :

Can Ship : Same Day (3 in stock)

Seal Kit :

Catalog # SK8514-9530, Seal Kit, BUNA Nitrile for all CT5M, CT6M, CT7M, CT8M Series Turbine Pumps. Includes P/N # 8514 - Mechanical Seal - Buna N, P/N # 9530 - Casing O-Ring - Buna N

Price: $ 73.64

Qty :

Can Ship : Same Day (3 in stock)


MATERIALS OF CONSTRUCTION Frame Cast Iron Raceway Bronze Impeller Bronze Monel Blades Shaft 316 Stainless Steel Shaft Seal CarbonCeramic / S. Steel / BunaN MAXIMUM OPERATING CONDITIONS TEMPERATURE For Standard BunaN Seal 225F 107C INLET PRESSURE 100 PSI 689kPa CASING WORKING PRESSURE 250 PSI 1724kPa VISCOSITY 200 SSU FEATURES BURKS close coupled turbine pumps, Series CT, 3450 60Hz and 2900 50Hz R.P.M. and 4CT, 1725 R.P.M. are available for capacities up to 8 g.p.m. 0.50 L.P.S. pressures up to 150 p.s.i. 1034 kpa and temperatures up to 225F 107C, come with standard mechanical shaft seal. Special shaft seals are available for higher temperatures and fluids other than water.

These compact turbine pumps are designed for pumping clear water and many other nonabrasive, lower viscosity liquids. They are especially engineered for boiler feed on steam process applications and will serve up to a 38 hp. boiler at a 3 to 1 safety factor. Available in bronze fitted as standard. All bronze or stainless steel construction also available. These pumps are recommended for many application requiring higher pressures and lower capacities.

BURKS is the only turbine pump with LifeLok External Impeller Adjustment feature that allows readjustment of impeller without disturbing piping, disassembling pump or replacing parts. Gives up to 40 longer service life than turbine pumps of other designs.
