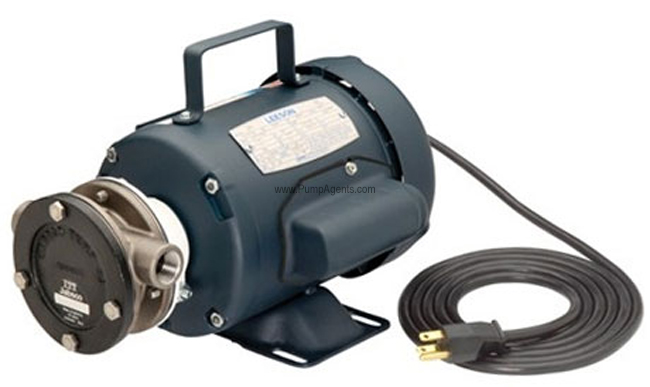

| Jabsco # 4720-0003 - Stainless Steel Rubber Impeller Pump
| FEATURES
|
| Pump
Body: |
316 Stainless Steel
|
|
Impeller: |
Nitrile Impeller
|
|
Shaft: |
Lip Type
|
|
Port Size: |
Lip Type
|
|
Motor / Amp Draw: |
1/3 Horsepower Horsepower, , Single Phase, TEFC (Totally Enclosed Fan Cooled)
|
|
|
|
|
|
APPLICATIONS |
Flow rate: 11 gpm flow
Self-priming to 10ft
Nitrile impeller is ideal for oil based products. Use Neoprene for water and general purpose pumping.
*** Motor is not explosion proof.
*** Do not run dry (impeller and seal damage will occur). Features:
• Operating Pressure : Standard 21 psi (1.5 bar) or 50 ft (15.2 m) of head
• Operating temperature : 50-180°F (10-82°C)
• Pump Priming : 8-10 ft (2.4-3.0 m) dry; 18-22 ft (5.5-6.7 m) wet
• Dimensions (HxWxD) : 8 1/4 x 7 3/2 x 13 1/8 (inches)
Applications:
CHEMICAL - Industrial Motor Pump Unit Circulating, Transferring and Filtering of Chemicals, Plating Solutions, Pharmaceuticals, Cosmetics and Farm Chemicals, Emptying and Filling Carboys, Vats, Tanks, Barrels or Entire Systems.
|
|
|
|
|
Jabsco # 4720-0003 - Stainless Steel Rubber Impeller Pump |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
| Parts and Accessories for Jabsco model 4720-0003 |
| Model
# |
Description |
Price
/ ea. |
ORDER |
CAN SHIP |
|
Pump Service Kit :
|
|
Impeller :
|
|
Shaft Seal :
|
|
Parts and Related Accessories :
|
|
