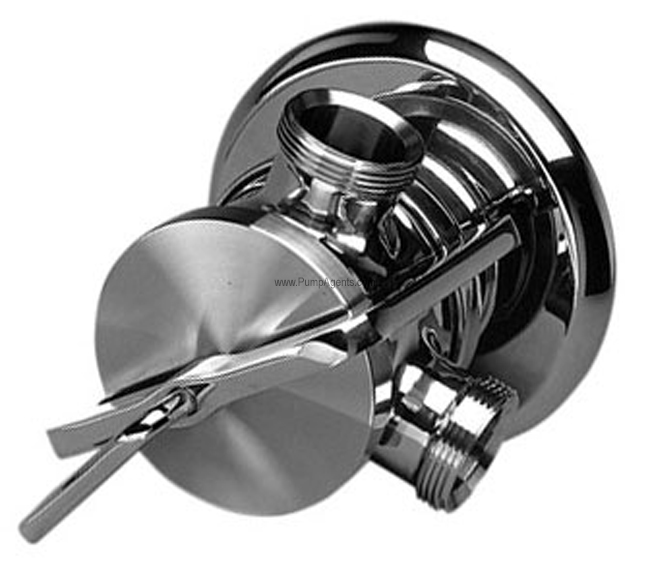

Jabsco # 15170-7365 Bulkhead Mounted Milk Tanker Pump

Jabsco Pump 15170-7365

Jabsco # 15170-7365

Jabsco catalog # 15170-7365, Bulkhead Mounted Milk Tanker Pedestal Pump, bare shafted pedestal pump end only without a Motor. 316 Stainless Steel Construction, with a Sanitary Neoprene Impeller and Sanitary Carbon Face Seal. Ports are 2 Inch ACME threads.

Price : $ 5874.03

Qty :

2 Weeks (0 in stock)

Click Here for PARTS



Product Information :

The Jabsco 15170-7365 is a 316 stainless steel Flexible Impeller pump with a Sanitary Neoprene Impeller, Sanitary Carbon Face seal, 2 Inch ACME Threaded Ports, bare shafted pedestal pump end only without a Motor. This product is specifically designed for farm pick-up milk tanker trucks equipped with a remote drive. This pump has a nominal flow rate of 90 GPM (397 LPM) at 1750 RPM, and is self-priming from dry up to 10 feet (3m) and primes at low or high speeds. Intake/Suction lines must be airtight to prevent product foaming and assure self-priming. Use noncollapsible hose. These pumps feature excellent self-priming, faster loading, more accurate metering, smooth, steady flow, long reliable life, easy servicing and hygienic design which make this pump excellent for transport service. Pump may be mounted in any position. The rotation of the pump shaft determines the location of the pump's intake and discharge ports; refer to dimensional drawing. Pump is normally assembled at factory for clockwise rotation, looking at end cover. This unit depends on liquid pumped for lubrication. Do Not Run Dry for more than 30 seconds. Lack of liquid will damage the impeller and the pump components. The temperature limits for the sanitary Neoprene impeller in this pump is are 40 degrees F to 150 degrees F ( 4 degrees C to 65 degrees C).

Features :

Pump Body:
316 Stainless Steel
Impeller:
Sanitary Neoprene
Shaft Seal:
Sanitary Carbon Face
Port Size:
Ports are 2 Inch ACME threads

Product Specs :

Flow rate up to 90 GPM .

Self-priming from dry up to 7.8' .

Pressure up to 21.7 psi .

Handles soft solids 0.7 Inch maximum diameter.

Certified to US 3A standard 02-11.

Minimal shear to thixotropic fluids.

Easy to service and maintain.


Parts and Accessories for Jabsco model 15170-7365


Major Overhaul Kit / Rebuild Kit :

Catalog # 90076-0015, Service Kit, with Impeller, O-Ring and seal

Price: $ 494.51

Qty :

Can Ship : Same Day (2 in stock)


Impeller :

Catalog # 8984-0005, Impeller, Neoprene

Price: $ 300.78

Qty :

Can Ship : Same Day (111 in stock)


Shaft Seal :

Catalog # 9023-0000, Service Kit, with Impeller, O-Ring and seal

Price: $ 111.44

Qty :

Can Ship : Same Day (73 in stock)

Applications

These units are specially designed for use as product pickup pumps mounted on over the road fluid transports. Offered in three sizes, this pump range provides an effective pump for the smaller truck mounted 2200 U. S. gallon tanks as well as a pump for the largest 6000 U.S. gallon trailer mounted tank. Although designed to conform to the 3A equipment standard for use in transferring milk, this pump can handle a wide range of fluids. It will pump either thin or viscous liquids and can handle more solids in suspension than other types of rotary pumps.

Before using pump it should be disassembled and cleaned to remove any dust and dirt resulting from storage or shipping. Wash parts in standard cleaning solutions approved for handling stainless steel. Thoroughly rinse before reassembly. Do not use iodine based sanitizers as the iodine attacks the Elastomer materials used in the impeller. All parts have been expertly machined and polished. Handle with care. Do not drop or mishandle.
