Tuthill Pump model 1LEV-C-A-7 Parts

PARTS LIST for Tuthill Pump model # 1LEV-C-A-7 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.


( Click Here for the Tuthill Pump 1LEV-C-A-7 Product Page )

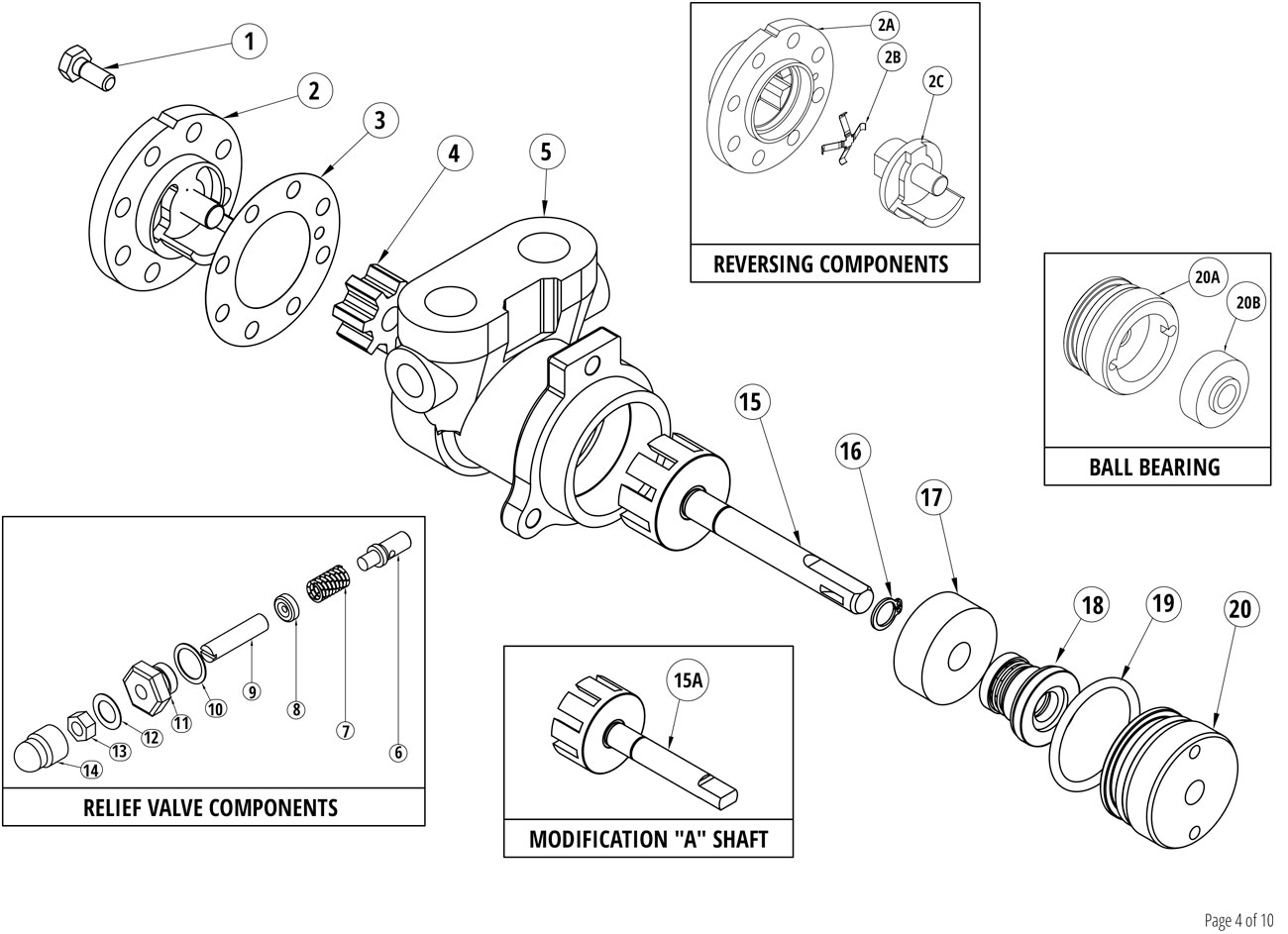

Blowup of 1LEV-C-A-7


Item 6
(on image above)

Part # 0LV58-X201

plunger

$ 40.25 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 7
(on image above)

Part # 0LWV63

standard spring (55-120)

$ 26.25 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Not Shown
(Not Shown on image above)

Part # 0C62-X201

optional spring (25-34)

$ 24.50 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Not Shown
(Not Shown on image above)

Part # 0C62-X299

optional spring (35-54)

$ 24.50 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Not Shown
(Not Shown on image above)

Part # 0LWVH63

optional spring (121-169)

$ 26.25 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Not Shown
(Not Shown on image above)

Part # 0LPV63

optional spring (170-374)

$ 26.25 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 10
(on image above)

Part # 30F64-X201

valve cap gasket

$ 22.75 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 11
(on image above)

Part # 0LWV56

valve cap

$ 49.00 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 12
(on image above)

Part # 30LE64-A

cap cover gasket

$ 24.50 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 13
(on image above)

Part # 30LE528

nut

$ 28.00 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 14
(on image above)

Part # 30LE56

acorn nut

$ 38.50 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (2 in stock)


Item 18
(on image above)

Part # 1LA9-7

Seal

standard Viton seal

$ 155.20 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (22 in stock)


Item 19
(on image above)

Part # P701-34-77

standard Viton O ring

$ 40.25 / each

Qty :

1 is required for rebuild

Can Ship : Same Day (5 in stock)
